Specifications

Product Type

High - Speed Fuse - Link

Brand

Mersen

Application

Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.

Utilization Category aR	Breaking Capacity 200kA AC	Rated Current (In) 2250A
Rated Voltage (Ur) 500V AC	Speed Class Ultra fast acting

Body Style Square body	Indicators Striker	Material Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting Flush ends metric threads	Size Code Size 33	Connection/Termination Flush ends metric threads

Depth 73mm	Height 78.5mm	Length 90mm
Weight 0.874kg (Approx.)	Width 73mm

Standards and Approvals

IEC 60269-4

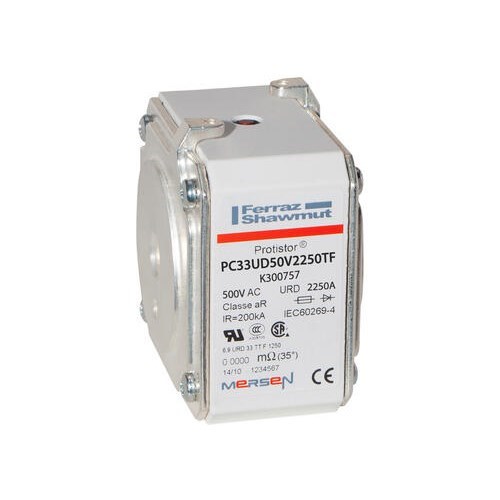

MERSEN FUSE LINK 2250A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 500V K300757
