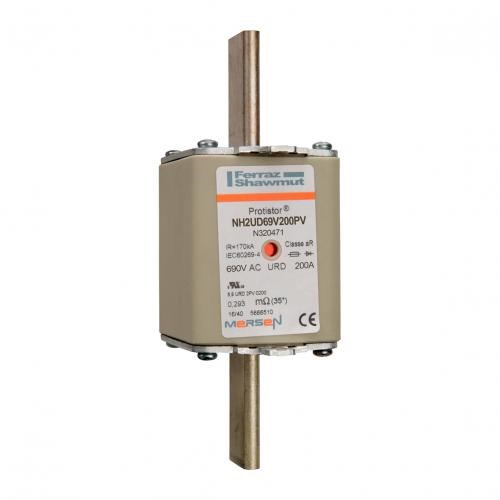

MERSEN FUSE LINK 200A NH2 DIN BLADE FOR SEMICONDUCTOR PROTECTION NHUD2-200/69 N320471

Product Code: N320471

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Application
Power semiconductor protection

Electrical

Utilization Category
aR
Breaking Capacity
170kA
Rated Current (In)
200A
Rated Voltage (Ur)
690V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
NH square body
Indicators
With double indicator
Material
Body:Ceramic, Terminal: Brass
Mounting
NH fuse holder / switch disconnector
Size Code
NH2
Connection/Termination
Plain blades

Dimensions & Physical Data

Depth
74mm
Length
150mm
Weight
0.62kg (Approx.)
Width
52mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; DIN 43620/00; RoHS
