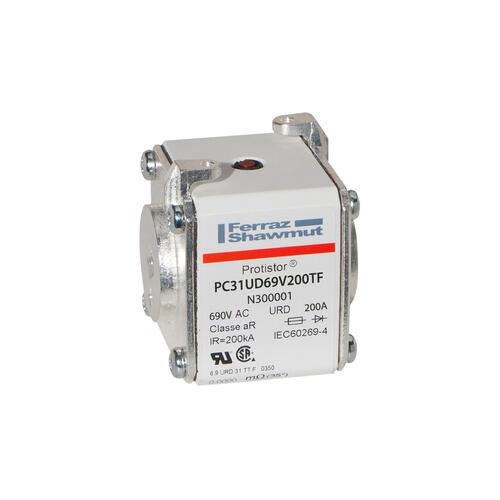

MERSEN FUSE LINK 200A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 31, 660V N300001

Product Code: N300001

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Semiconductor protection for power electronic systems.

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
200A
Rated Voltage (Ur)
690V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Indicators
Striker
Material
Ceramic body, silver-plated copper contacts, non-magnetic hardware, silica sand filler
Mounting
Flush ends metric threads
Size Code
Size 31
Connection/Termination
Flush ends metric threads

Dimensions & Physical Data

Depth
56.5mm
Weight
0.39kg (Approx.)
Width
51mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
