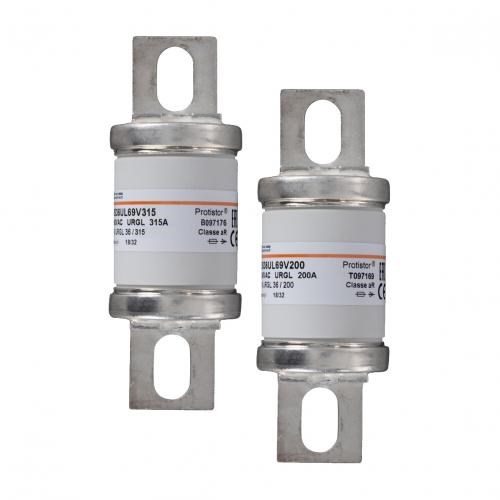

MERSEN FUSE LINK 200A 690V OFFSET TAG FOR SEMICONDUCTOR PROTECTION S097168

Product Code: S097168

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Semiconductor Fuse Link
Brand
Mersen
Series
Protistor
Application
Semiconductor protection

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Power Loss
41.4W
Rated Current (In)
200A
Rated Voltage (Ur)
690V
Speed Class
aR

Mechanical

Body Style
Cylindrical
Indicators
without indicator
Material
Body: Ceramic; Contact: Silver plated copper
Mounting
Bolt mount
Size Code
36x55
Connection/Termination
Offset tag

Dimensions & Physical Data

Length
110mm (Overall)
Weight
0.216kg (Approx.)
Width
37.3mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1 & -4
