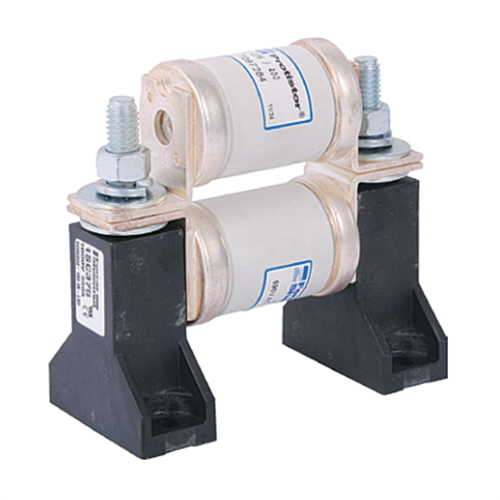

MERSEN FUSE LINK 200A 690V CENTER TAG DUAL BODY SEMICONDUCTOR PROTECTION F097272

Product Code: F097272

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed BS88 Fuse - Link
Brand
Mersen
Application
Semiconductor protection for power electronics

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
200A
Rated Voltage (Ur)
690V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Centre tag dual body
Indicators
Without indicator
Material
Ceramic body, silver-plated contacts
Mounting
Centre tag / bolted
Size Code
2 x 36 x 55
Connection/Termination
Centre tag blades

Dimensions & Physical Data

Height
36mm
Length
55mm
Weight
0.30kg (Approx.)

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
