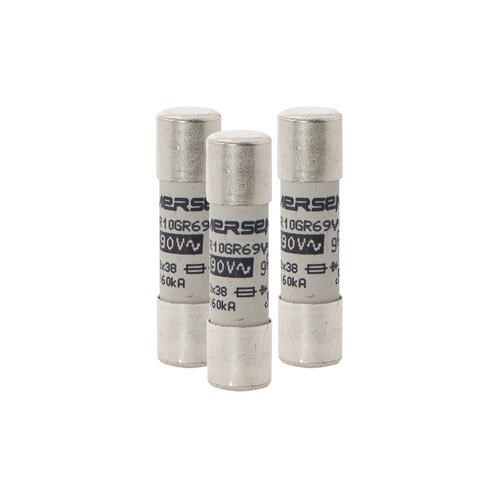

MERSEN FUSE LINK 1A 690V gR 10X38MM FOR SEMICONDUCTOR PROTECTION USE CMS101 BASE 10F01 10GR01 L1014563

Product Code: L1014563

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Cylindrical Semiconductor Fuse
Brand
Mersen
Application
Protection of power semiconductors; use CMS101 base

Electrical

Utilization Category
gR
Breaking Capacity
High breaking capacity
Rated Current (In)
1 A
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
690 V AC
Speed Class
Ultra-fast acting

Mechanical

Body Style
Cylindrical / ferrule
Indicators
without indicator
Material
Ceramic body; silver-plated contacts
Mounting
CMS101 fuse base
Size Code
10 x 38
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
38 mm
Weight
0.007 kg
Width
Ø 10 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
