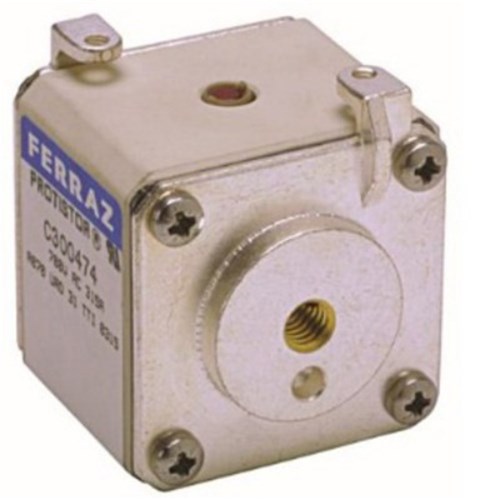

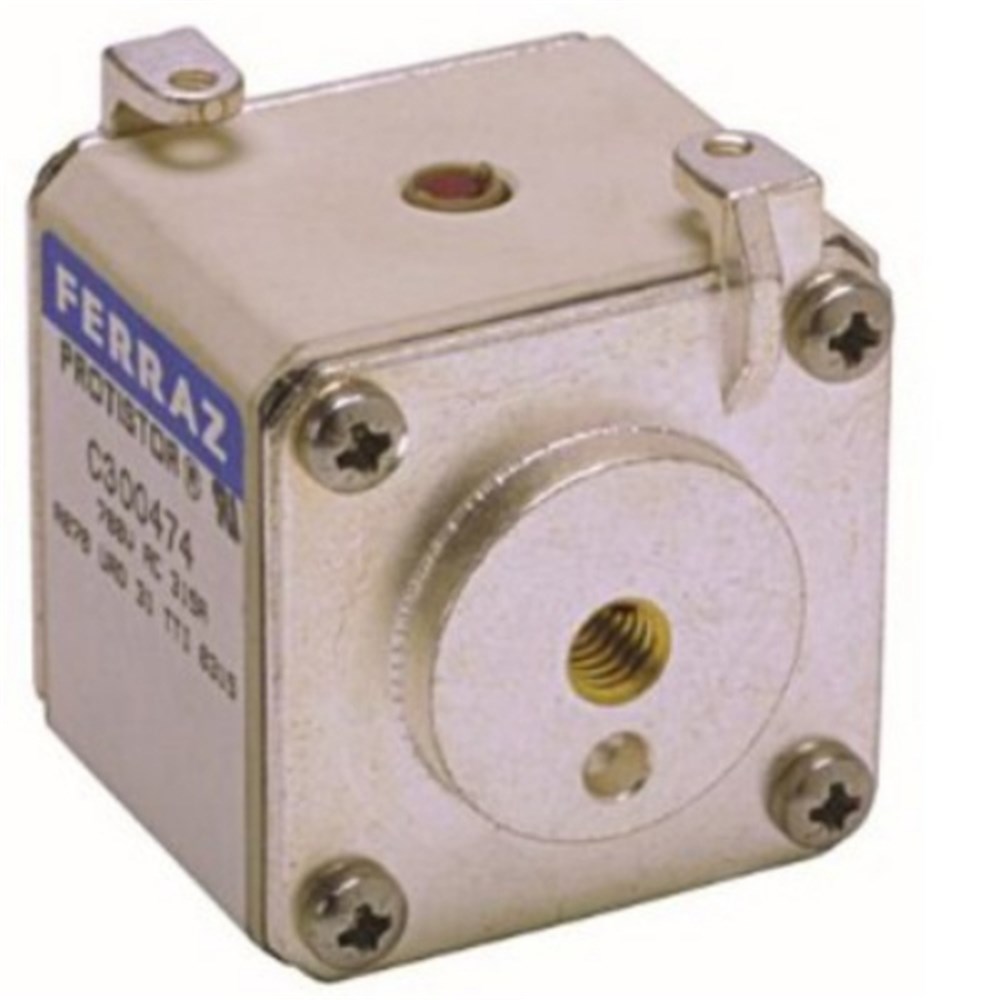

MERSEN FUSE LINK 1800A, END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 600V A300587

Product Code: A300587

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Speed Fuse - Link
Brand
Mersen
Series
Protistor
Application
Semiconductor protection

Electrical

Utilization Category
aR
Rated Current (In)
1800A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC IEC / 650V AC UL
Speed Class
High speed

Mechanical

Body Style
Square body
Indicators
Striker
Material
Ceramic body, silver fuse element, copper terminals
Mounting
Flush end mounting
Size Code
Size 33
Connection/Termination
Flush ends with metric threaded inserts

Dimensions & Physical Data

Depth
78.5mm
Length
50.6mm
Weight
0.8056kg (Approx.)
Width
73mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
