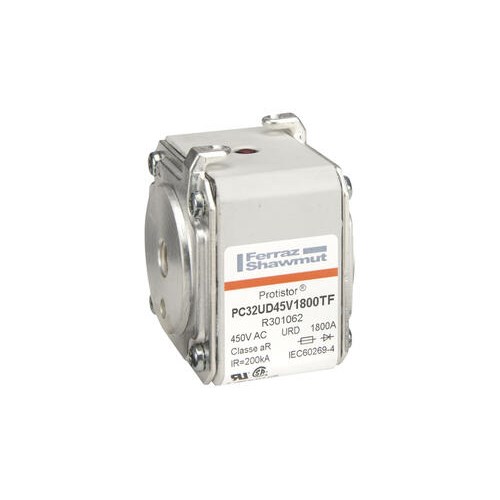

MERSEN FUSE LINK 1800A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 450V R301062

Product Code: R301062

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Series
aR
Application
Semiconductor protection

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
1800A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
450V AC
Speed Class
aR

Mechanical

Body Style
Square body
Indicators
Striker
Material
Body: Ceramic, Contact: Silver plated copper
Size Code
Size 32
Connection/Termination
Flush ends metric threads

Dimensions & Physical Data

Depth
65mm
Length
50.6mm
Weight
0.546kg (Approx.)
Width
59mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4

Documents

IPD Product Catalogue V17
