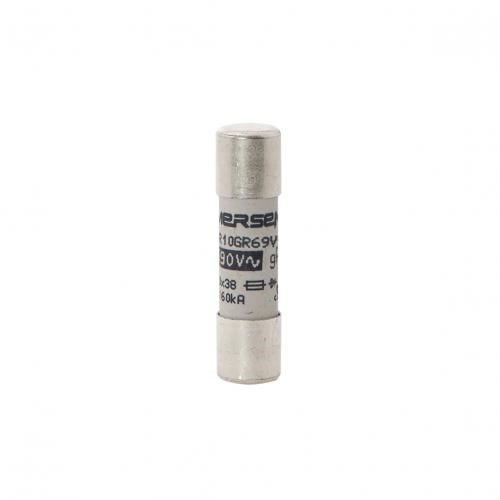

MERSEN FUSE LINK 16A 690V gR 10*38MM FOR SEMICONDUCTOR PROTECTION USE CMS101 BASE 10F16 10GR16 D1014579

Product Code: D1014579

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High-speed cylindrical fuse
Brand
Mersen
Series
Protistor 10x38 gR
Application
Protection of inverters, UPS, variable speed drives and discrete semiconductor devices

Electrical

Suitable For
CMS101
Utilization Category
gR
Breaking Capacity
160 kA
Rated Current
16 A
Rated Voltage
690 V AC
Speed Class
Super fast acting / FF

Mechanical

Body Style
Cylindrical
Material
Ceramic body
Mounting
Fuse holder
Size Code
10 x 38
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
38 mm
Weight
0.008 kg
Width
Ø 10.3 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; VDE 636-23 CCC, CE, UKCA, RoHS, REACH
