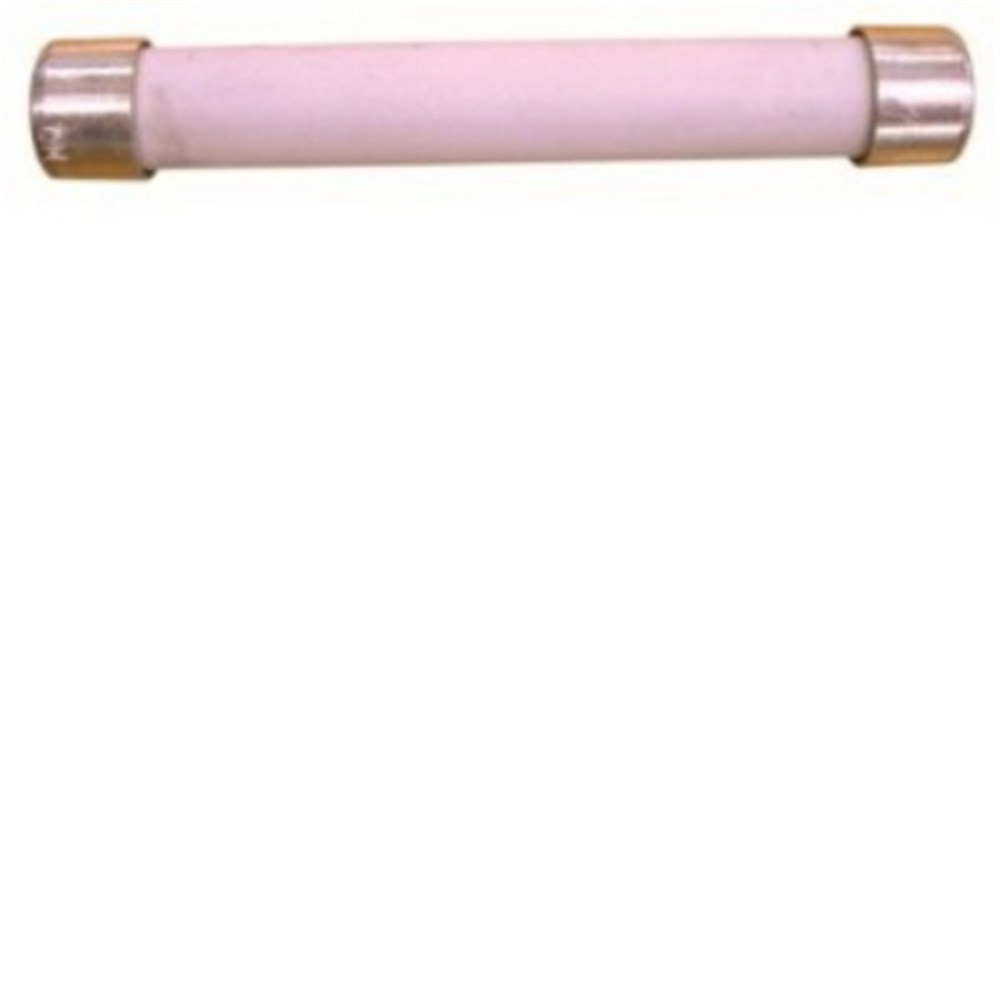

MERSEN FUSE LINK 16A 1500VAC/1000VDC FERRULE TYPE gR 20 X 127MM INCL STRIKER, SUIT PSI HOLDERS C089495

Product Code: C089495

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Application
DC control circuit, measuring & monitoring auxiliaries circuit

Electrical

Utilization Category
gR
Breaking Capacity
100kA
Rated Current (In)
16A
Rated Voltage (Ur)
1000V DC
Speed Class
High speed / fast acting

Mechanical

Body Style
Cylindrical
Indicators
With striker
Material
Ceramic body, silver fuse elements, metal end caps
Mounting
Ferrule fuse holder
Size Code
20 x 127
Connection/Termination
Ferrule end caps
Fuse Holder
PSI holders

Dimensions & Physical Data

Length
127mm
Weight
0.097kg (Approx.)
Width
Ø 20mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; VDE 636-23

Documents

IPD Product Catalogue V17
