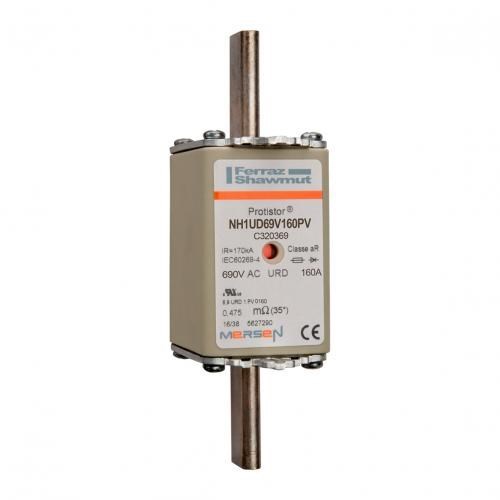

MERSEN FUSE LINK 160A NH1 DIN BLADE FOR SEMICONDUCTOR PROTECTION NHUD1-160/69 C320369

Product Code: C320369

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Square Body High - Speed Fuse
Brand
Mersen
Series
Protistor NH1UD
Application
Semiconductor protection for power conversion equipment, diodes, thyristors and IGBT devices

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
160A
Rated Voltage (Ur)
690V AC IEC / 700V AC UL
Speed Class
Ultra-fast / aR

Mechanical

Body Style
Square body
Indicators
Double indicator
Material
Silver fuse elements; silver-plated contacts; sand-filled body
Mounting
Fuse holder
Size Code
NH1
Connection/Termination
Plain blades

Dimensions & Physical Data

Height
52.5mm
Length
135mm
Width
39.5mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; DIN 43620 UL, CE, UKCA, RoHS, REACH
