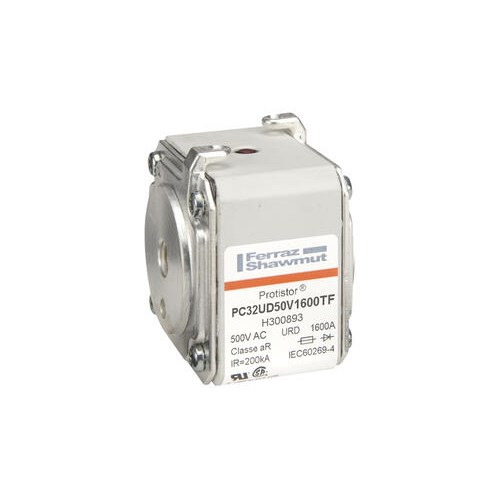

MERSEN FUSE LINK 1600A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 500V H300893

Product Code: H300893

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
1600A
Rated Voltage (Ur)
500V AC IEC / 550V AC UL
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Indicators
Striker
Material
Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting
Flush ends metric threads
Size Code
Size 32
Connection/Termination
Flush ends metric threads

Dimensions & Physical Data

Depth
59mm
Height
65mm
Length
78mm
Weight
0.529kg (Approx.)
Width
59mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4

Documents

IPD Product Catalogue V17
