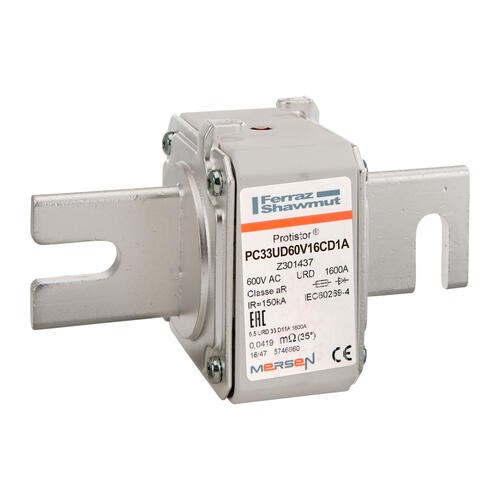

MERSEN FUSE LINK 1600A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V Z301437

Product Code: Z301437

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Application
Power semiconductor protection for diodes, thyristors and IGBT devices

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
1600A
Rated Voltage (Ur)
600V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Fixing Centres
110mm
Indicators
With striker
Material
Body:Ceramic, Terminal: Silver plated copper
Mounting
DIN 110 blades
Size Code
Size 33
Connection/Termination
DIN 110 blades

Dimensions & Physical Data

Depth
78.5mm
Length
134.6mm
Weight
0.87kg (Approx.)
Width
73mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; VDE 636-23; CCC GB 13539.4; RoHS
