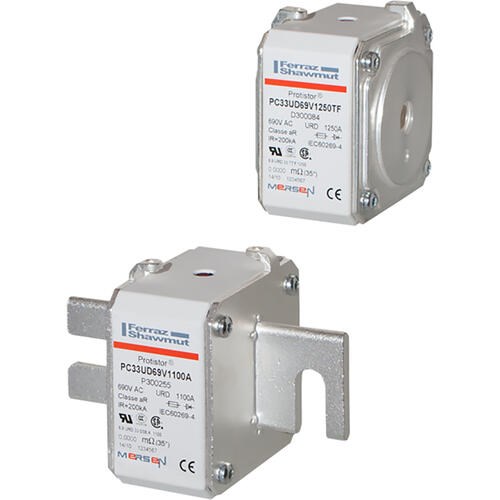

MERSEN FUSE LINK 1400A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V R300257

Product Code: R300257

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Series
aR
Application
Semiconductor protection

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
1400A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC
Speed Class
aR

Mechanical

Body Style
Square body
Indicators
Striker
Material
Body: Ceramic, Contact: Silver plated copper
Size Code
Size 33
Connection/Termination
DIN 80 blades

Dimensions & Physical Data

Depth
78.5mm
Length
110mm
Weight
0.874kg (Approx.)
Width
73mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
