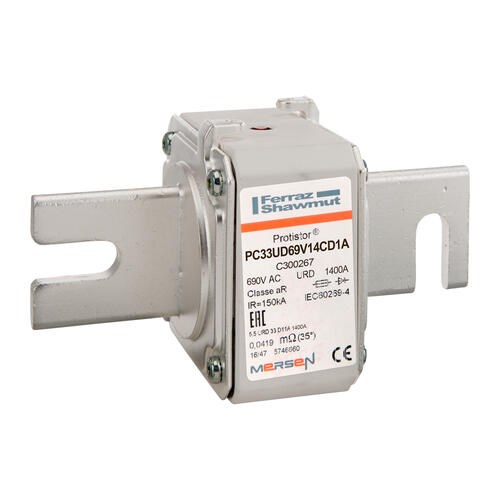

MERSEN FUSE LINK 1400A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V C300267

Product Code: C300267

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
Protistor size 33 aR, 450 to 690 V AC IEC / 700 V AC UL
Application
Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
1400A
Rated Voltage (Ur)
690V AC IEC / 700V AC UL
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Fixing Centres
101.6mm
Indicators
Striker
Material
Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting
DIN 110 blades
Size Code
Size 33
Connection/Termination
DIN 110 blade tags

Dimensions & Physical Data

Depth
78.5mm
Length
134.6mm
Weight
0.874kg (Approx.)
Width
73mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4

Documents

IPD Product Catalogue V17
