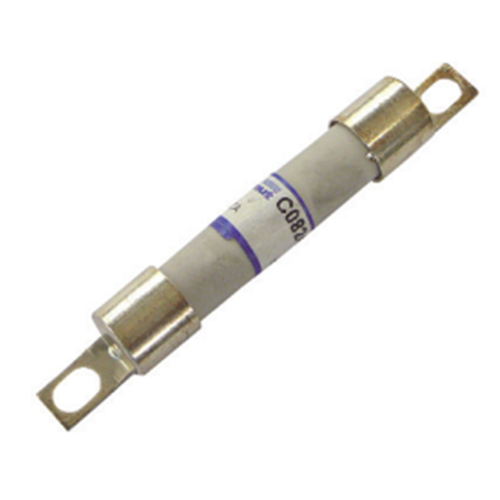

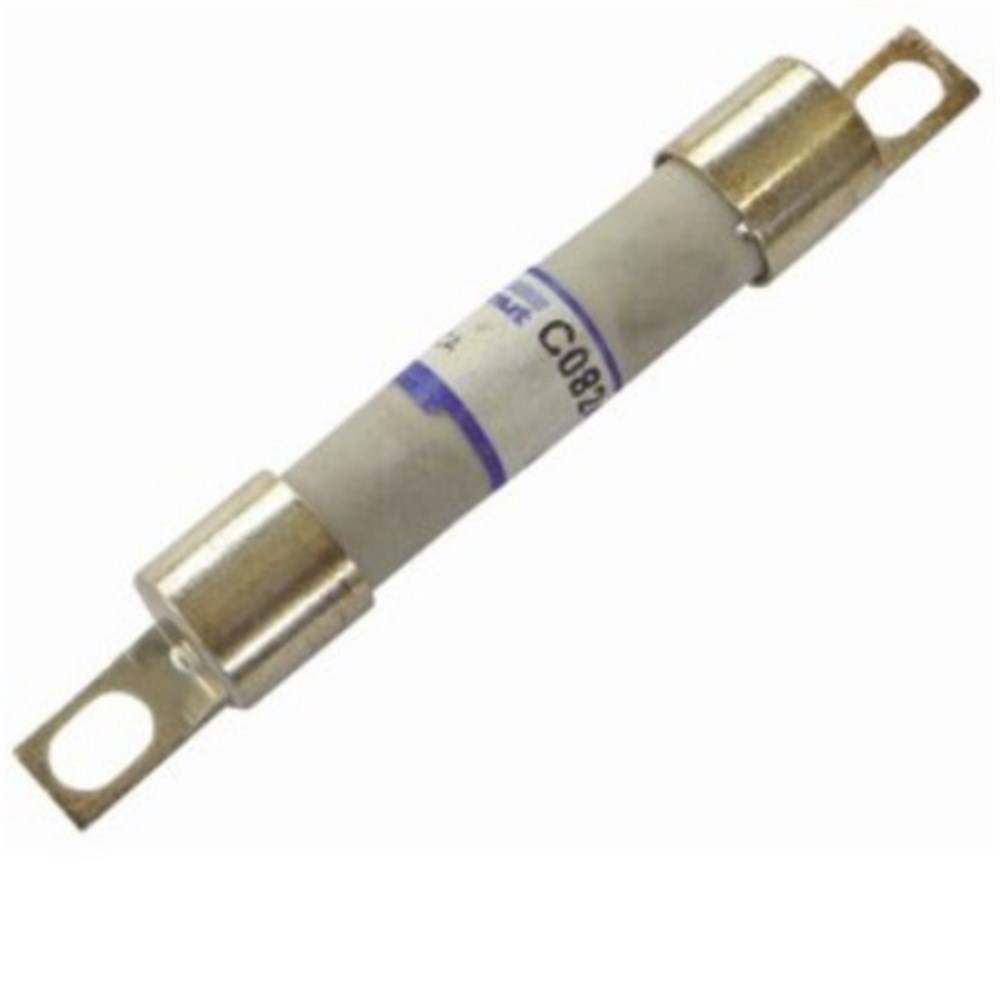

MERSEN FUSE LINK 12A 690V OFFSET TAG SINGLE BODY SEMICONDUCTOR Z097059

Product Code: Z097059

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed BS88 Fuse - Link
Brand
Mersen
Series
URE / BS10
Application
Semiconductor protection

Electrical

Utilization Category
gR
Breaking Capacity
200 kA AC
Rated Current (In)
0
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
690 V AC
Speed Class
gR

Mechanical

Body Style
Offset tag single body
Indicators
Without indicator
Material
Body: Ceramic, Contact: Silver plated copper
Size Code
10 x 50.8
Connection/Termination
Offset tag blades

Dimensions & Physical Data

Height
11.1 mm
Length
50.8 mm
Weight
0.013 kg (Approx.)
Width
Ø 10.3 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1; IEC 60269-4; BS88
