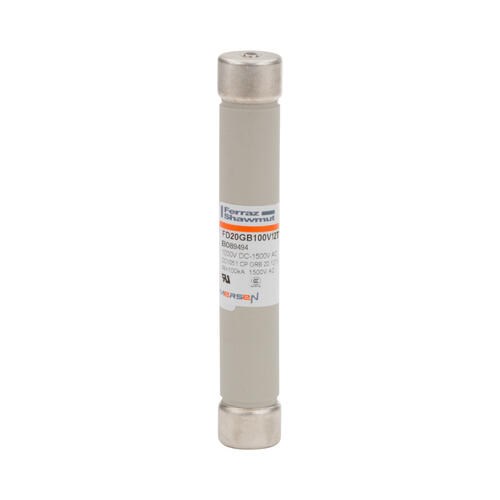

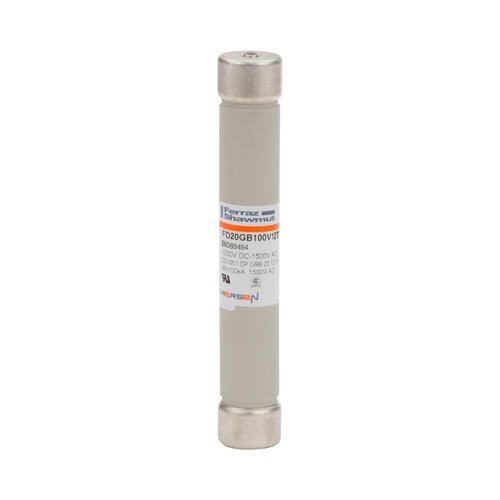

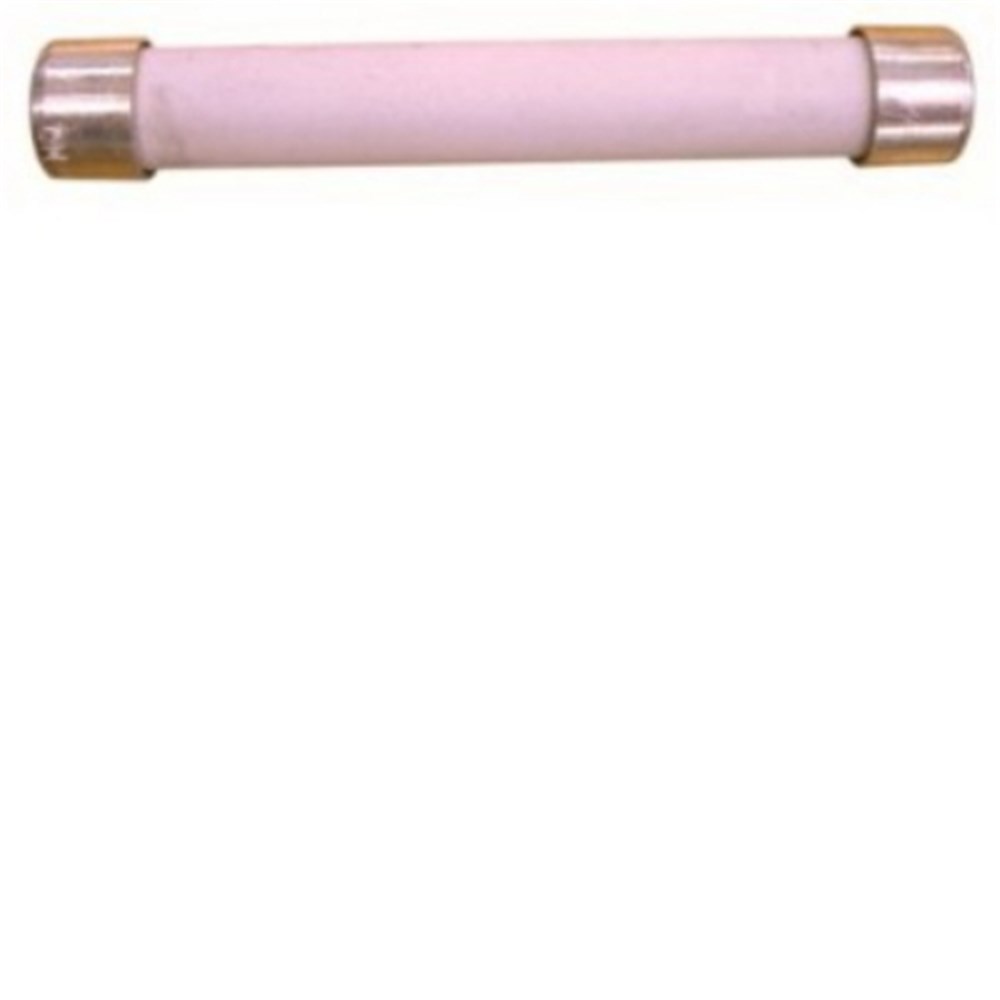

MERSEN FUSE LINK 12A 1500VAC/1000VDC FERRULE TYPE gR 20 X 127MM INCL STRIKER, SUIT PSI HOLDERS B089494

Product Code: B089494

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Cylindrical Semiconductor Fuse
Brand
Mersen
Application
DC control circuit, measuring & monitoring auxiliaries circuit

Electrical

Utilization Category
gR
Rated Current (In)
0
Rated Voltage (Ur)
1000 V DC
Speed Class
Fast acting / full range

Mechanical

Body Style
Cylindrical / ferrule
Indicators
with striker
Mounting
PSI holders
Size Code
20 x 127
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
127 mm
Weight
0.097 kg
Width
Ø 20 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; UL 248-1
