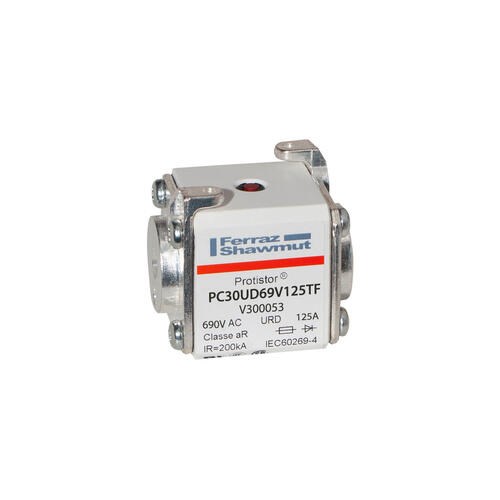

MERSEN FUSE LINK 125A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V V300053

Product Code: V300053

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Application
Protection of inverters, motor drives, UPS systems and similar 690 V or less equipments

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
125A
Rated Voltage (Ur)
690V
Speed Class
Ultra-fast acting

Mechanical

Body Style
Square body
Indicators
Wth striker
Material
Body:Ceramic, Terminal: Silver plated brass
Size Code
Size 30
Connection/Termination
TTF M8 threaded

Dimensions & Physical Data

Height
48mm
Length
50.6mm
Weight
0.25kg (Approx.)
Width
40mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269.4

Documents

IPD Product Catalogue V17
