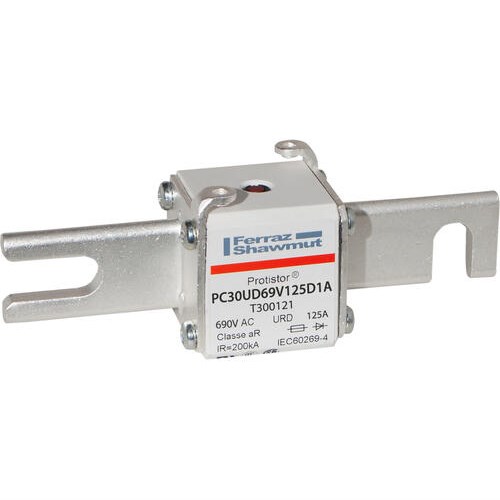

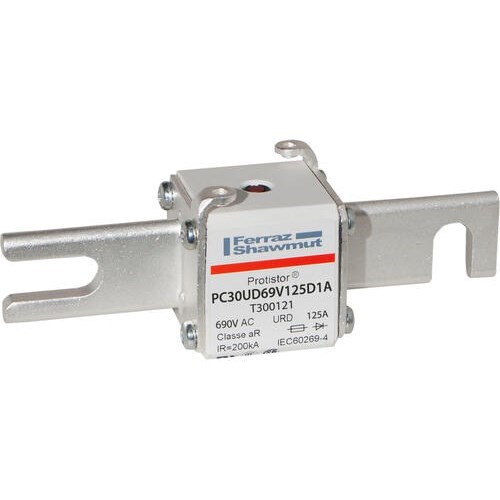

MERSEN FUSE LINK 125A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V T300121

Product Code: T300121

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Square Body High - Speed Semiconductor Fuse
Brand
Mersen
Application
Protection of power semiconductors: diodes, thyristors, IGBT devices, inverters, drives and UPS

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
125A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC IEC / 700V AC UL
Speed Class
Ultra-fast acting

Mechanical

Body Style
Square body
Fixing Centres
110mm
Indicators
with striker
Material
Ceramic body; silver-plated contacts; sand-filled fuse element
Mounting
Blade / bolted mounting
Size Code
Body size 30
Connection/Termination
DIN 110 blades

Dimensions & Physical Data

Weight
0.33kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; VDE 636-23

Documents

IPD Product Catalogue V17
