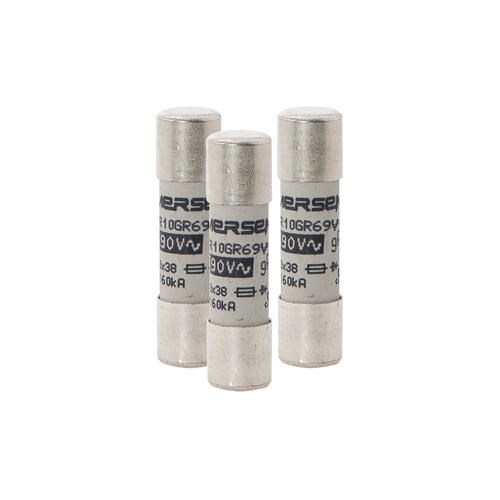

MERSEN FUSE LINK 12.5A gR 690V 10X38 FOR SEMICONDUCTOR PROTECTION USE IN CMS101 BASE 10F12.5 C1014578

Product Code: C1014578

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Application
Small inverters, UPS systems, motor drives and similar equipment up to 700 V

Electrical

Utilization Category
gR
Breaking Capacity
160kA AC
Rated Current (In)
12.5A
Rated Voltage (Ur)
690V AC
Speed Class
High speed / fast acting

Mechanical

Body Style
Cylindrical
Indicators
Without indicator
Material
Ceramic body, silver fuse elements, metal end caps
Mounting
10x38 fuse holder
Size Code
10 x 38
Connection/Termination
Ferrule end caps
Fuse Holder
CMS101 base / Modulostar CMS10

Dimensions & Physical Data

Length
38mm
Weight
0.008kg (Approx.)
Width
Ø 10mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; VDE 636-23
