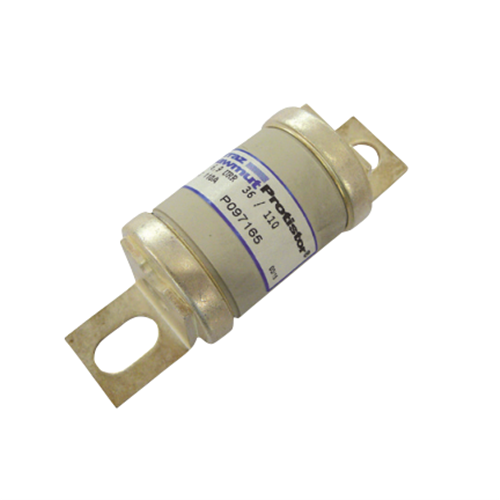

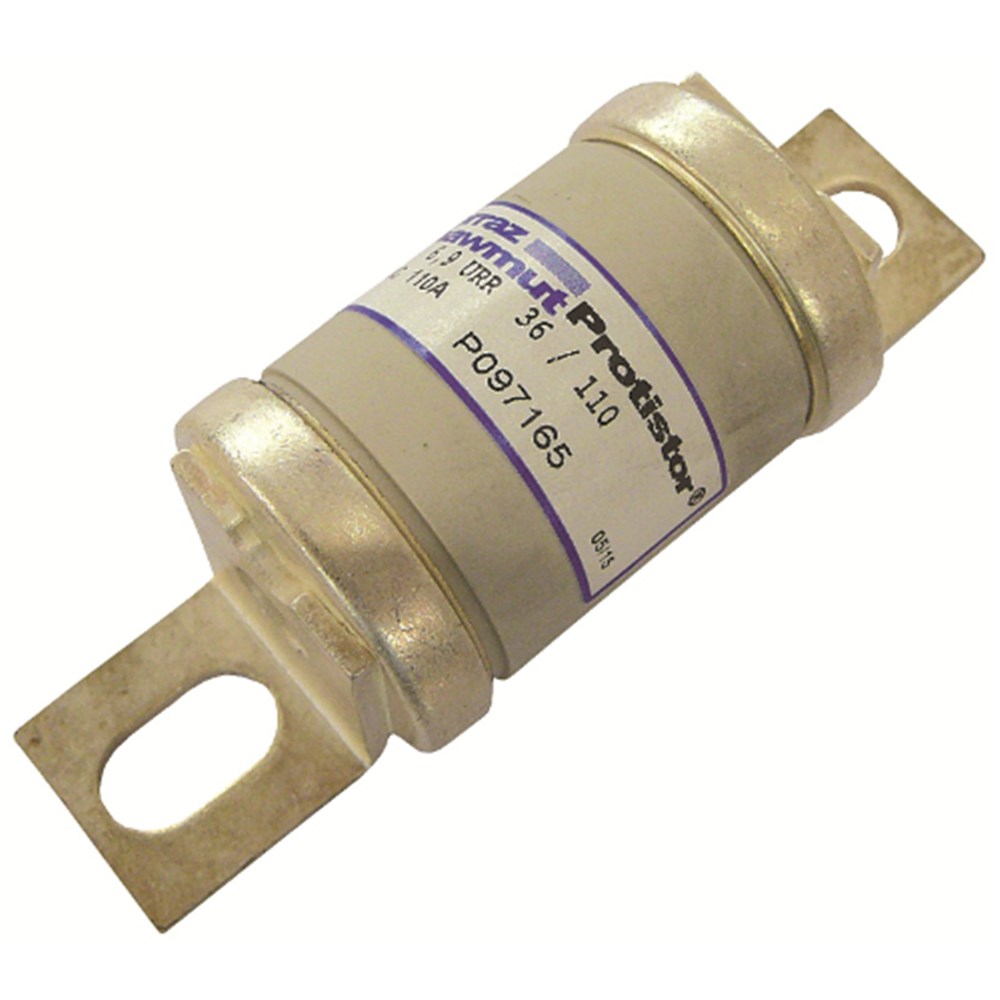

MERSEN FUSE LINK 110A 690V OFFSET TAG FOR SEMICONDUCTOR PROTECTION FUSELINK P097165

Product Code: P097165

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Semiconductor Fuse
Brand
Mersen
Application
Protection of power semiconductors

Electrical

Utilization Category
Semiconductor protection
Breaking Capacity
High breaking capacity
Rated Current (In)
110A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC
Speed Class
Ultra-fast acting

Mechanical

Body Style
Offset tag
Mounting
Bolted / tag mounting
Size Code
BS36
Connection/Termination
Offset tag terminals

Dimensions & Physical Data

Weight
0.21kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1; IEC 60269-4

Documents

IPD Product Catalogue V17
