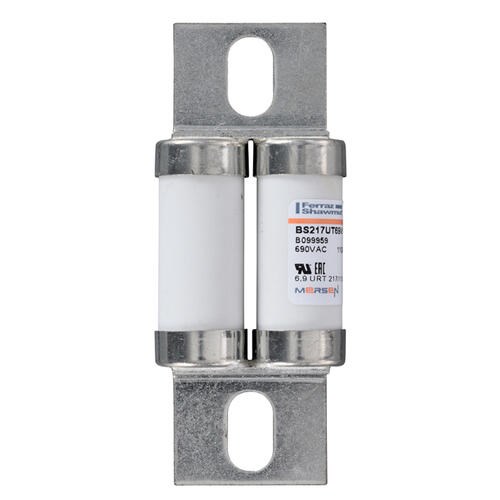

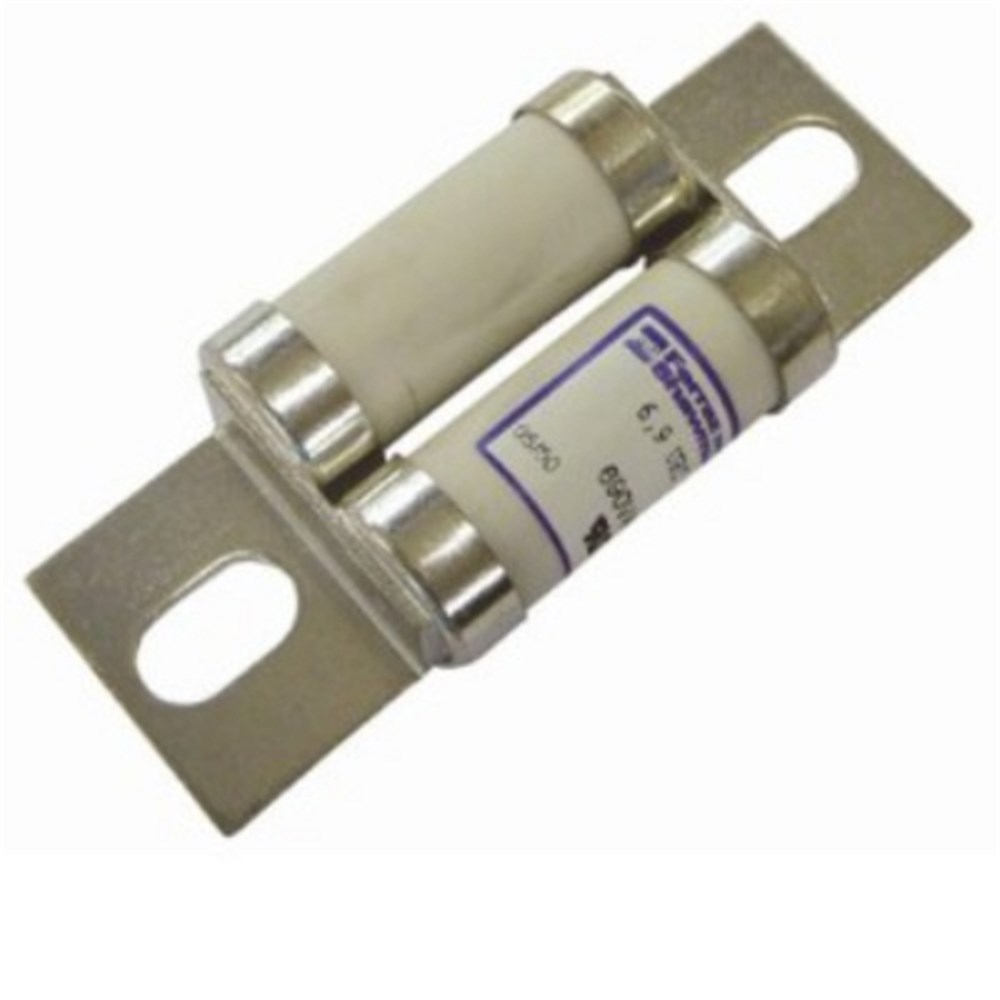

MERSEN FUSE LINK 110A 690V OFFSET TAG DUAL BODY SEMICONDUCTOR Replaces GSGB110 B099959

Product Code: B099959

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Semiconductor Fuse
Brand
Mersen
Application
Protection of power semiconductors

Electrical

Utilization Category
gR
Rated Current (In)
110A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC / 700V AC UL
Speed Class
Ultra-fast acting

Mechanical

Body Style
Offset tag dual body
Indicators
without indicator
Material
Ceramic body; silver-plated contacts
Mounting
Bolted / tag mounting
Size Code
2 x 17 x 49
Connection/Termination
Offset tag terminals

Dimensions & Physical Data

Weight
0.082kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1; IEC 60269-4

Documents

IPD Product Catalogue V17
