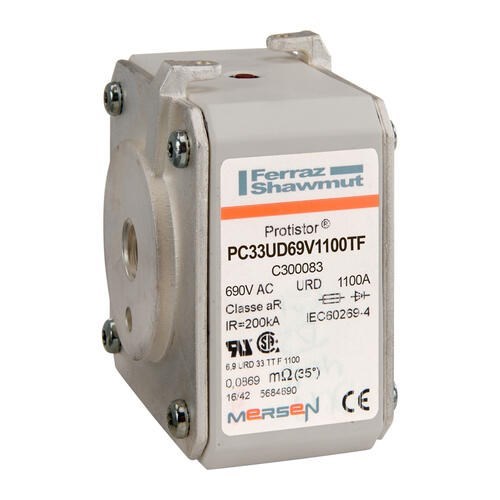

MERSEN FUSE LINK 1100A, END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V C300083

Product Code: C300083

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Application
Semiconductor protection

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
1100A
Rated Voltage (Ur)
690V AC

Mechanical

Body Style
Square body
Indicators
Striker
Material
Body:Ceramic
Size Code
Size 33
Connection/Termination
Flush ends

Dimensions & Physical Data

Depth
78.5mm
Length
50.6mm
Weight
0.79kg (Approx.)
Width
73mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
