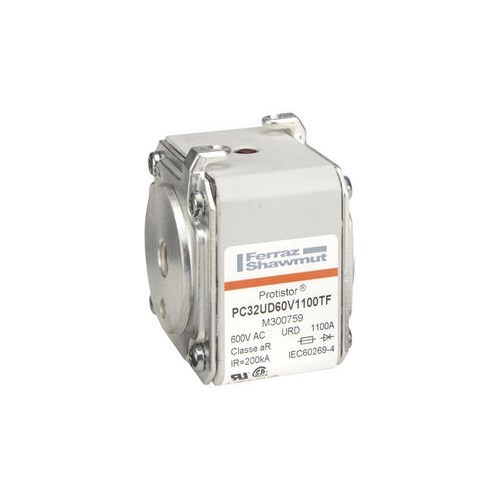

MERSEN FUSE LINK 1100A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 660V M300759

Product Code: M300759

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Semiconductor protection for power electronics: drives, converters, inverters, UPS and rectifier equipment.

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
1100A
Rated Voltage (Ur)
600V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Indicators
Striker
Material
Ceramic body, silver-plated copper contacts, non-magnetic hardware, silica sand filler
Mounting
Flush ends metric threads
Size Code
Size 32
Connection/Termination
Flush ends metric threads

Dimensions & Physical Data

Depth
65mm
Length
50.6mm
Weight
0.5463kg (Approx.)
Width
59mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4

Documents

IPD Product Catalogue V17
