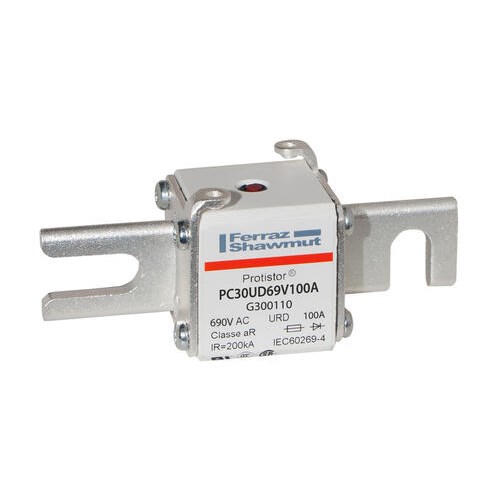

MERSEN FUSE LINK 100A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V G300110

Product Code: G300110

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Application
Power semiconductor protection

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
100A
Rated Voltage (Ur)
690V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Fixing Centres
80mm
Indicators
With striker
Material
Body:Ceramic, Terminal: Silver plated copper
Mounting
DIN 80 blades
Size Code
Size 30
Connection/Termination
DIN 80 blades

Dimensions & Physical Data

Depth
48mm
Length
110mm
Weight
0.27kg (Approx.)
Width
40mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; VDE 636-23; CCC GB 13539.4; RoHS
