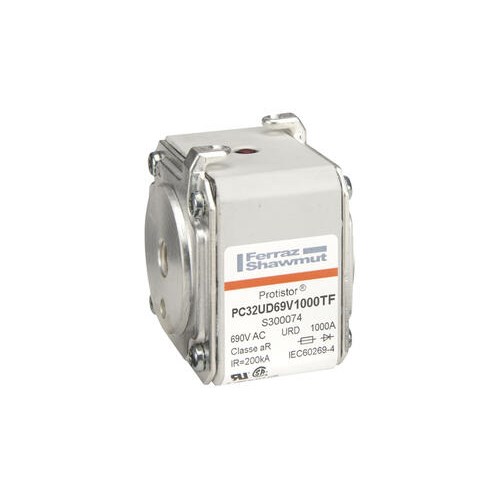

MERSEN FUSE LINK 1000A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 660V S300074

Product Code: S300074

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Semiconductor Fuse Link
Brand
Mersen
Series
Protistor
Application
Semiconductor protection

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Power Loss
115W
Rated Current (In)
1000A
Rated Voltage (Ur)
690V
Speed Class
aR

Mechanical

Body Style
Square body
Indicators
Striker
Material
Body: Ceramic; Contact: Silver plated copper
Mounting
Bolted
Size Code
Size 32
Connection/Termination
Flush ends

Dimensions & Physical Data

Length
50.6mm
Weight
0.55kg (Approx.)
Width
59mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1 & -4
