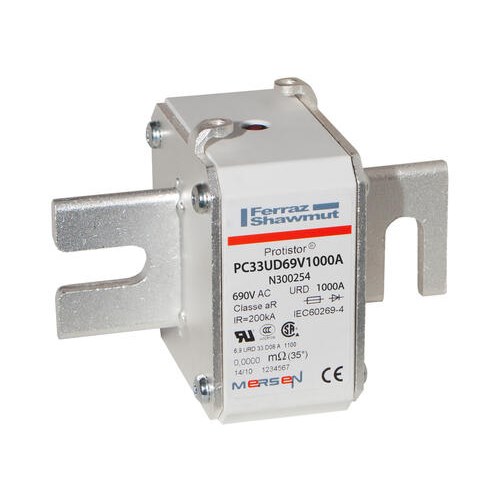

MERSEN FUSE LINK 1000A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V N300254

Product Code: N300254

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Semiconductor protection for power electronic systems.

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
1000A
Rated Voltage (Ur)
690V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Fixing Centres
80mm
Indicators
Striker
Material
Ceramic body, silver-plated copper contacts, non-magnetic hardware, silica sand filler
Mounting
DIN 80 blades
Size Code
Size 33
Connection/Termination
DIN 80 blades

Dimensions & Physical Data

Depth
78.5mm
Length
110mm
Weight
0.81kg (Approx.)
Width
73mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
