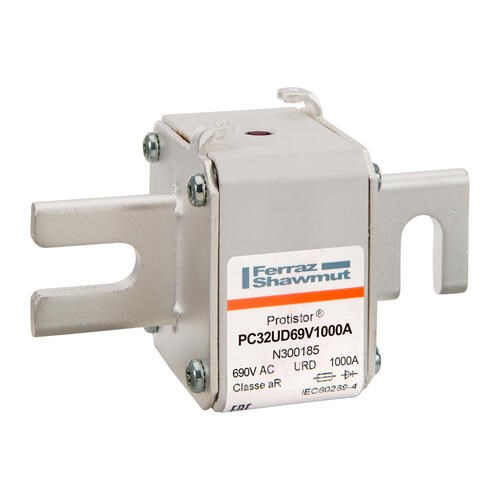

MERSEN FUSE LINK 1000A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 660V N300185

Product Code: N300185

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Square Body High - Speed Fuse
Brand
Mersen
Series
Protistor size 32 aR
Application
Semiconductor protection for power conversion equipment, diodes, thyristors and IGBT devices

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
1000A
Rated Voltage (Ur)
690V AC IEC / 700V AC UL
Speed Class
Ultra-fast / aR

Mechanical

Body Style
Square body
Indicators
With striker
Material
Silver fuse elements; silver-plated contacts; sand-filled body
Mounting
Fuse holder
Size Code
Size 32
Connection/Termination
DIN 80 blades

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4 CCC, CSA, UL, CE, UKCA, RoHS, REACH

Documents

IPD Product Catalogue V17
