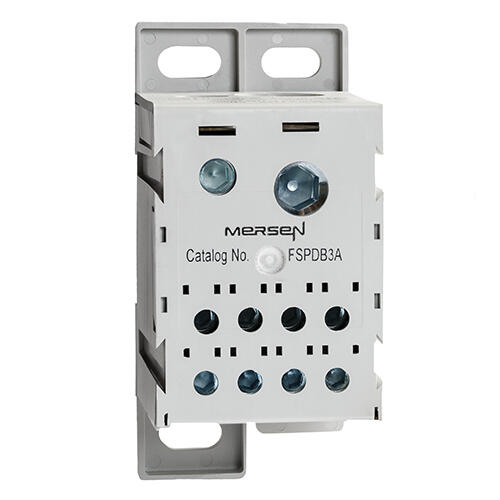

Mersen FSPDB3A Finger-Safe Power Distribution Block 600/1500VAC/DC 310A

Product Code: FSPDB3A

  • Supports 310 A current capacity
  • Compatible with copper/aluminium cables
  • Fits wire range: 350 mcm, 2/0-14 AWG
  • Suitable for 600/1500 VAC/VDC applications
  • Compact size: 46.9 mm wide
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Brand
Mersen

Electrical

No. of Poles (Total)
1
Rated Current
310 A
Rated Voltage
600/1500 VAC/VDC
Wire Range
350 mcm, 2/0-14 AWG

Mechanical

Cable Type
Cu/Al
Cover Colour
Grey
Material
Nylon body; tin-plated aluminium connector
Mounting Type
DIN rail (35 mm)
No. of Holes
10
Sealable
No
Tightening Torque
Primary: 350–3/0 AWG 200 lb-in; 2/0–#1 AWG 100 lb-in; #2–#6 AWG 80 lb-in; #8–#14 AWG 35 lb-in; Secondary: #8–#14 AWG 35 lb-in

Dimensions & Physical Data

Depth
100.8 mm
Height
64.3 mm
Weight
0.3039 kg
Width
46.9 mm

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 947-7-1; IEC 529; IEC 68-2-6; CE; RoHS

Documents

IPD Product Catalogue V17
