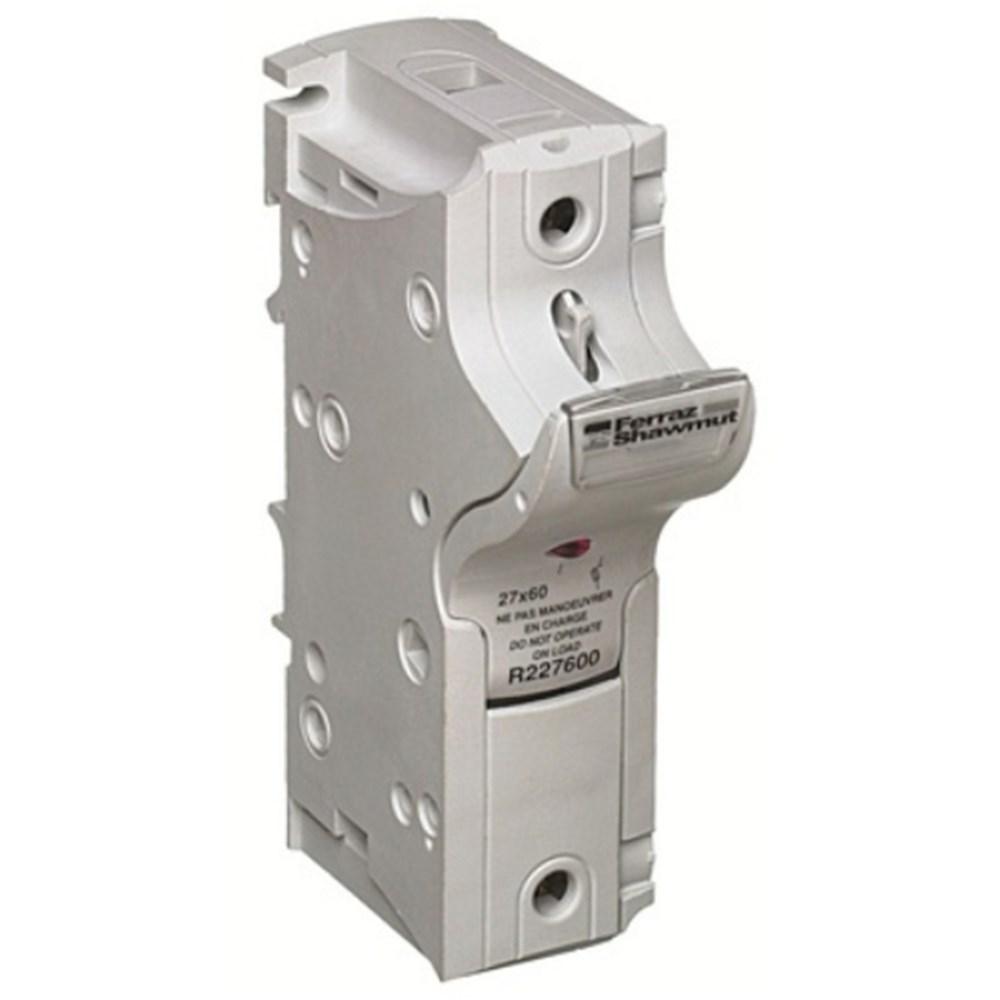

Mersen CMS272 Compact Fuse Holder 140A 2-P 800VAC/DC DIN Rail Mount 35sq-mm Cable Entry 27mm Dia x 60mm L Fuse

Product Code: CMS272

  • Supports up to 140 A current
  • Suitable for 800 VAC/VDC
  • Compact size: 80x149.4x93.5 mm
  • 2-pole design with IP20 protection
  • Fits on DIN rail, cable entry: 35 sq-mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Modular Fuse Holder
Brand
Mersen
Series
Modulostar CMS27 / UltraSafe US27
Application
High-speed fuse protection for small inverters, UPS systems and motor drives, non-load operation

Electrical

Suitable For
27 x 60 mm cylindrical fuse links
Rated Current (In)
140A max
Rated Voltage (Ur)
800V AC / 800V DC

Mechanical

Mounting
DIN rail
Connection/Termination
Faston lugs

Dimensions & Physical Data

Depth
86mm
Height
117mm
Width
80mm

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-2, IEC 60947-3, UL 4248-1, RoHS

Documents

IPD Product Catalogue V17
