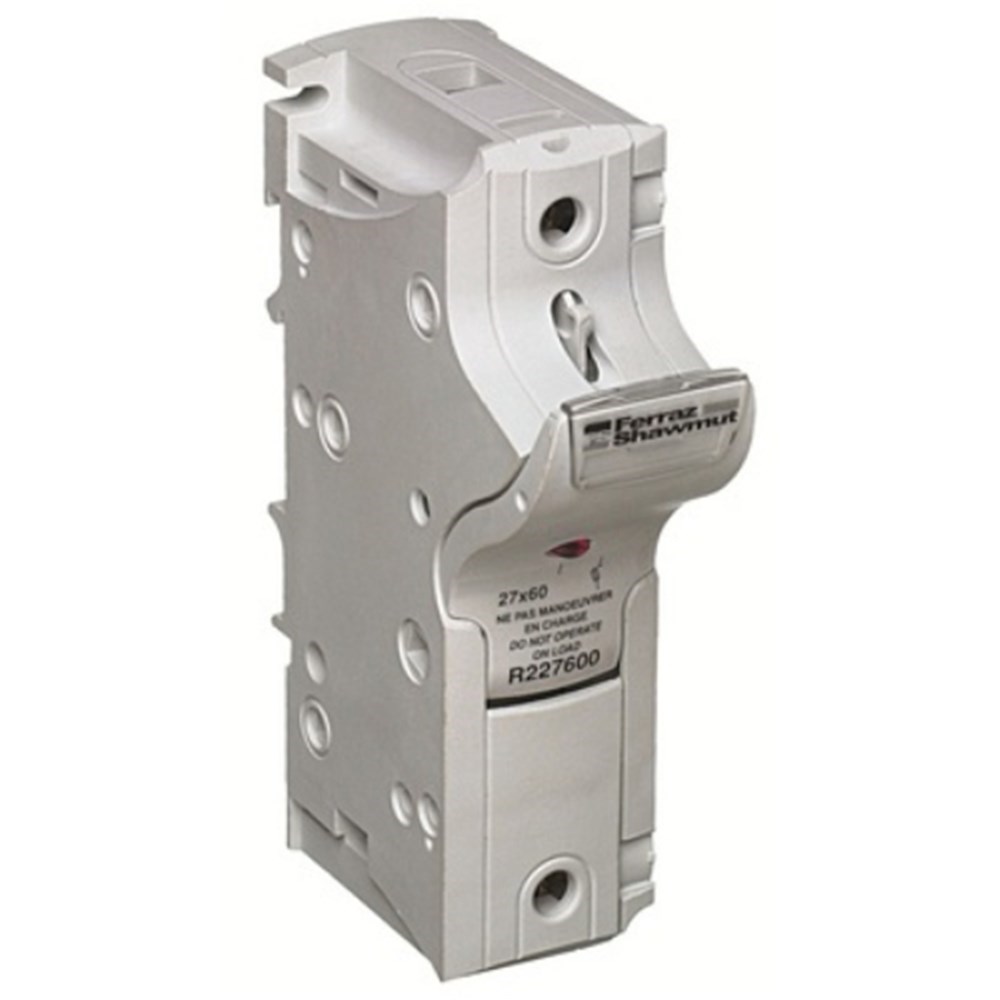

Mersen CMS271 Compact Fuse Holder 140A 1-P 800VAC/DC DIN Rail Mount 35sq-mm Cable Entry 27mm Dia x 60mm L Fuse

Product Code: CMS271

  • Rated for 140 A current capacity
  • Supports up to 800 VAC/VDC voltage
  • Compact dimensions: 40 mm W, 149.4 mm H, 93.5 mm D
  • IP20 protection rating ensures safety
  • Easy DIN Rail mounting system
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Modular Fuse Holder
Brand
Mersen
Series
Modulostar CMS27 / UltraSafe US27
Application
High-speed fuse protection for small inverters, UPS systems and motor drives, non-load operation

Electrical

Suitable For
27 x 60 mm cylindrical fuse links
Rated Current (In)
140A max
Rated Voltage (Ur)
800V AC / 800V DC

Mechanical

Mounting
DIN rail
Connection/Termination
Faston lugs

Dimensions & Physical Data

Depth
86mm
Height
117mm
Width
40mm

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-2, IEC 60947-3, UL 4248-1, RoHS
