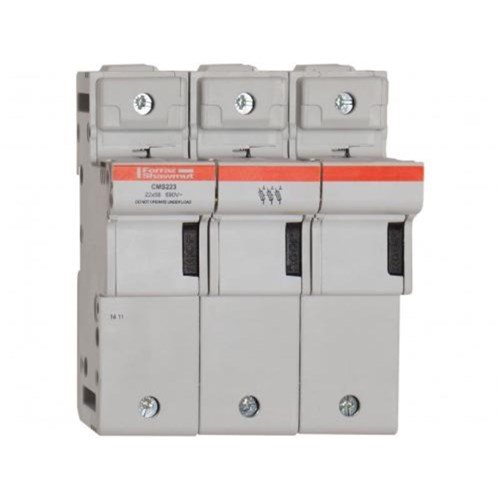

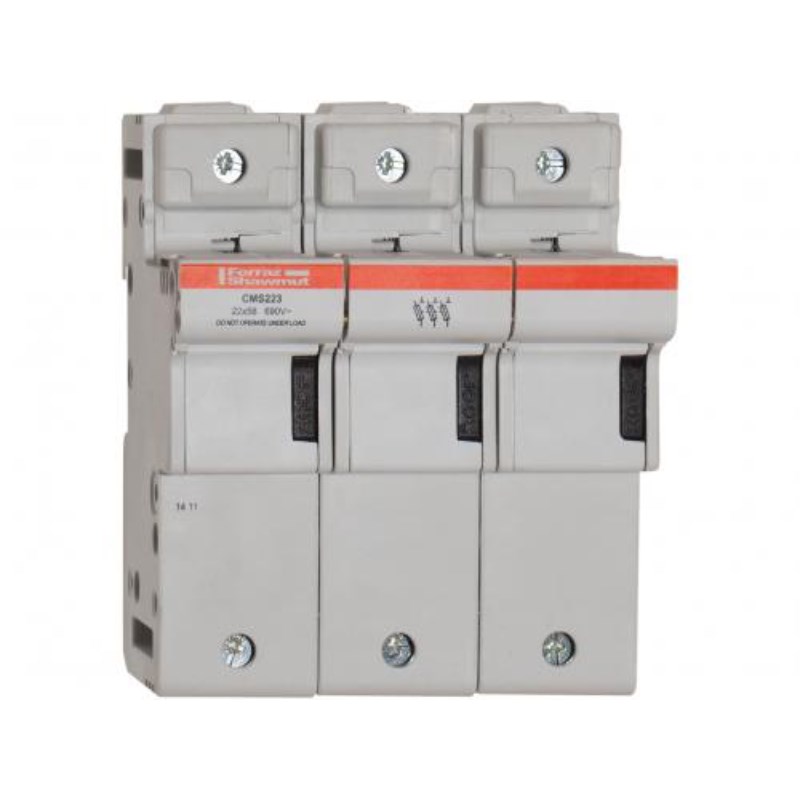

Mersen CMS223 Compact Fuse Holder 125A 3-P 690VAC/DC DIN Rail Mount 22mm Dia x 58mm L Fuse

Product Code: CMS223

  • Supports up to 125 A current
  • Compact size: 105x127.5x76.5 mm
  • High short circuit rating: 100 kA
  • Suitable for 690 VAC/VDC systems
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Modular Fuse Holder
Brand
Mersen
Series
Modulostar CMS22
Application
Protection of motors, transformers, low-voltage distribution and control circuits, compact space applications

Electrical

Suitable For
22 x 58 mm cylindrical fuse links
Rated Current (In)
125A
Rated Short Circuit Current
100kA
Rated Voltage (Ur)
690V AC / 690V DC

Mechanical

Cable Entry
Rigid wire 1.5-50 mm², multistrand wire 35 mm²
Mounting
DIN rail
Connection/Termination
Screw terminals

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-2, IEC 60947-3, RoHS

Documents

IPD Product Catalogue V17
