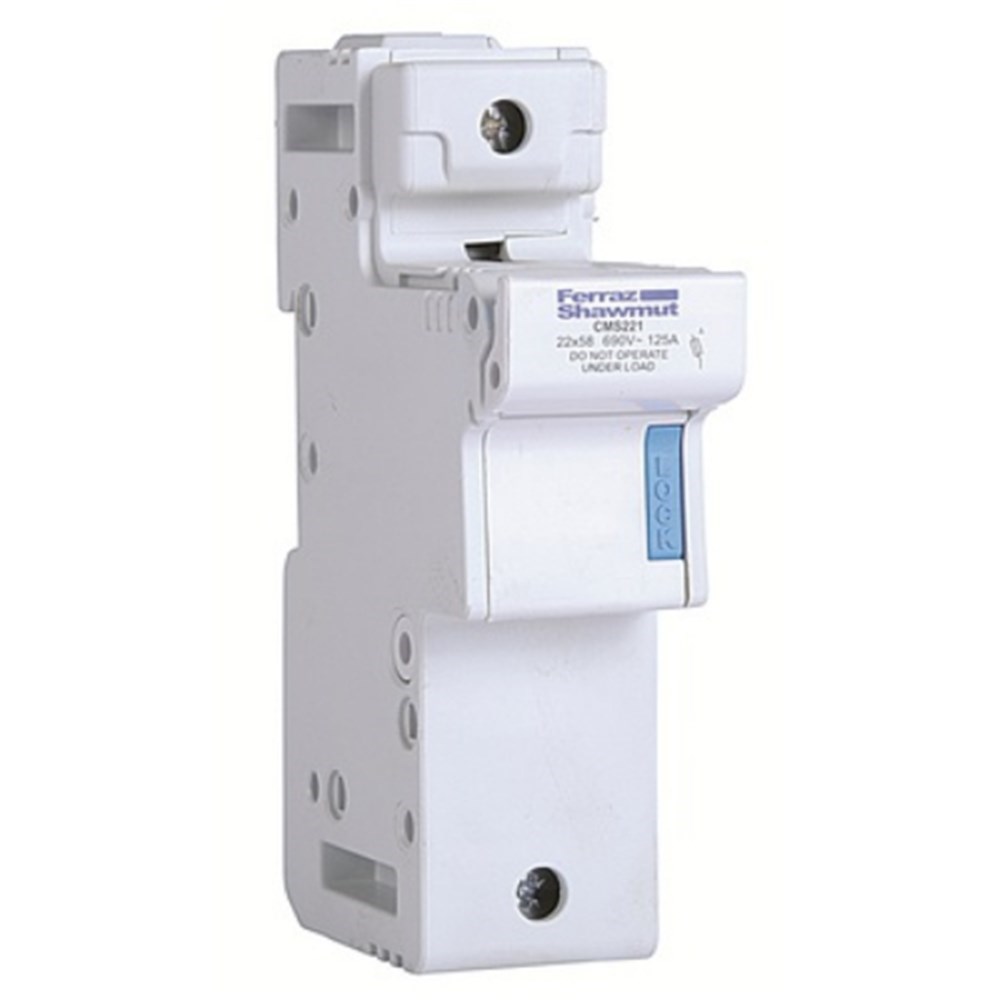

Mersen CMS221S Compact Fuse Holder 125A 1-P 690VAC/DC DIN Rail Mount 35sq-mm Cable Entry 22mm Dia x 57mm L Fuse

Product Code: CMS221S

  • Suitable for 125 A applications
  • Operates at 690 VAC/VDC
  • Single pole configuration
  • IP20 protection rating
  • DIN Rail mounting compatible
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Modular Fuse Holder
Brand
Mersen
Series
Modulostar CMS22
Application
Protection of motors, transformers, low-voltage distribution and control circuits, compact space applications

Electrical

Suitable For
22 x 58 mm cylindrical fuse links
Rated Current (In)
125A
Rated Short Circuit Current
100kA
Rated Voltage (Ur)
690V AC / 690V DC

Mechanical

Cable Entry
Rigid wire 1.5-50 mm², multistrand wire 35 mm²
Mounting
DIN rail
Connection/Termination
Screw terminals

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-2, IEC 60947-3, RoHS

Documents

IPD Product Catalogue V17
