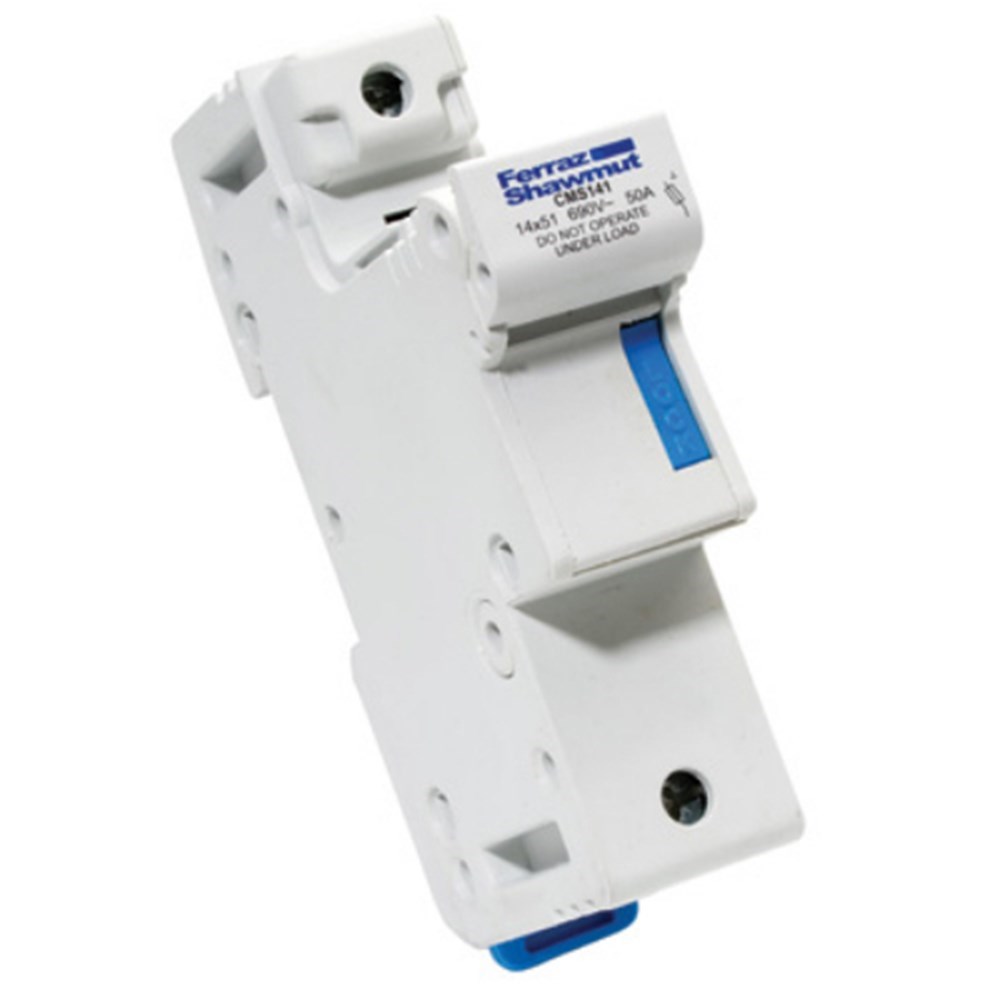

Mersen CMS141M Compact Fuse Holder 50A 1-P 690VAC/DC DIN Rail Mount 25sq-mm Cable Entry 14mm Dia x 51mm L Fuse

Product Code: CMS141M

  • Rated for 50 A current
  • Supports up to 690 VAC/VDC
  • Short circuit protection at 100 kA
  • Compact size: 26.5mm W x 110.8mm H x 76.5mm D
  • Easy DIN Rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Modular Fuse Holder
Brand
Mersen
Series
Modulostar CMS14
Application
Protection of motors, transformers, low-voltage distribution and control circuits, compact space applications

Electrical

Suitable For
14 x 51 mm cylindrical fuse links with striker for microswitch use
Rated Current (In)
50A
Rated Short Circuit Current
100kA
Rated Voltage (Ur)
690V AC / 690V DC

Mechanical

Cable Entry
Rigid wire 1.5-35 mm², stranded wire 1.5-25 mm²
Mounting
DIN rail
Connection/Termination
Screw terminals

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-2, IEC 60947-3, RoHS

Documents

IPD Product Catalogue V17
