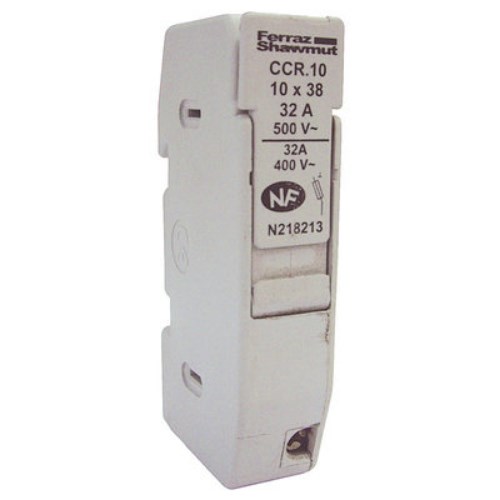

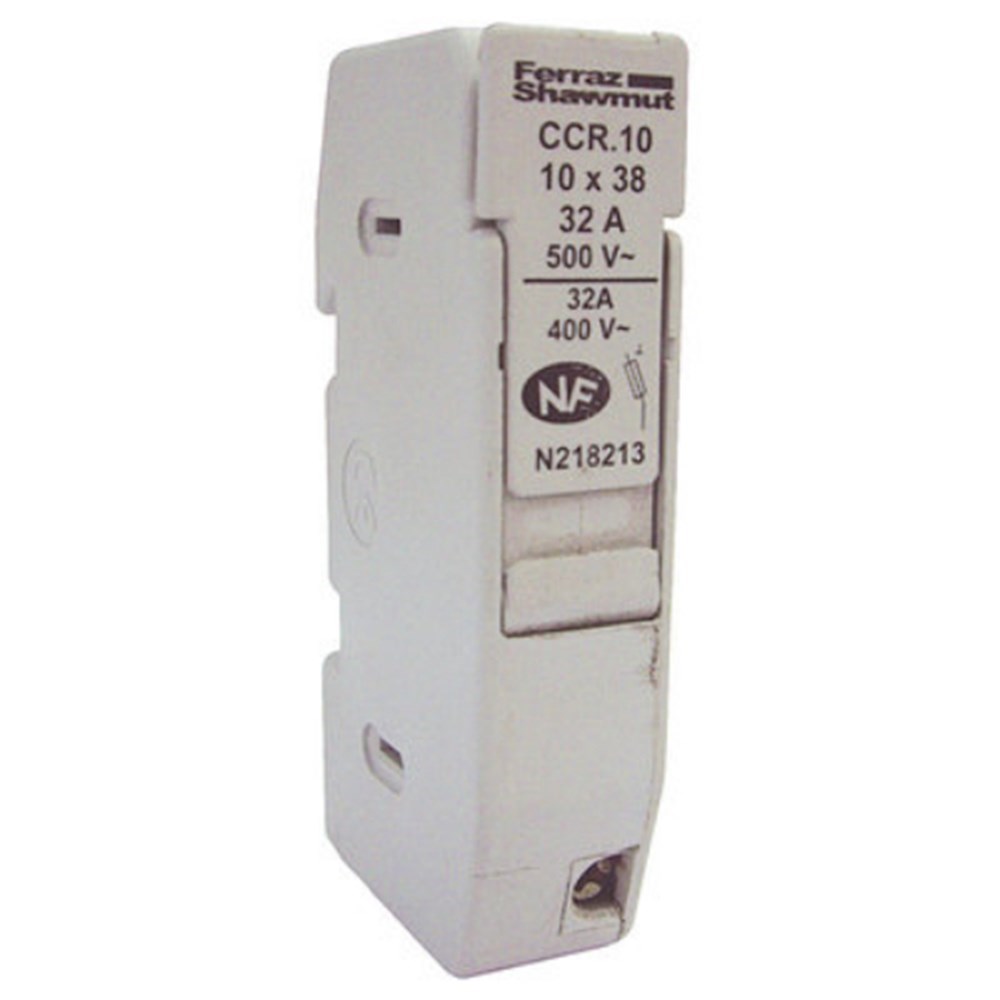

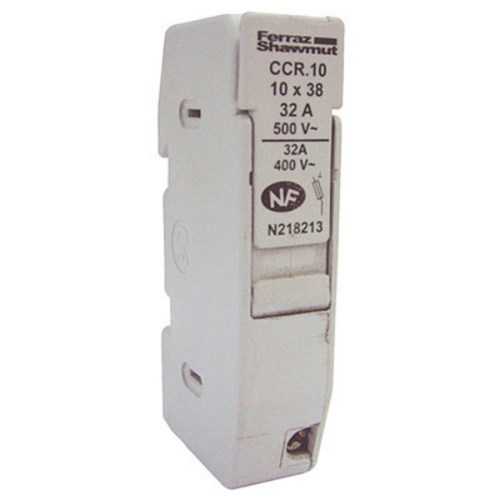

Mersen CCR101 Fuse Holder 32A 1-P 500VAC DIN Rail Mount 10sq-mm Cable Entry 10mm Dia x 38mm L Fuse

Product Code: CCR101

  • 32A rated current for reliable performance
  • Handles up to 120kA short circuit current
  • Suitable for 500VAC applications
  • Compact design fits DIN rail systems
  • IP20 protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Compact Fuse Holder
Brand
Mersen
Series
Compact fuse holders CCR
Application
Protection of motors, transformers, low-voltage distribution and control circuits, compact space applications

Electrical

Suitable For
10 x 38 mm cylindrical fuse links
Rated Current (In)
32A
Rated Short Circuit Current
120kA
Rated Voltage (Ur)
500V AC

Mechanical

Cable Entry
Rigid wire 1-10 mm², multistranded wire 1-6 mm²
Mounting
DIN rail
Connection/Termination
Philips slot-head screw terminals

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-2, IEC 60269-3, IEC 60947-3, RoHS
