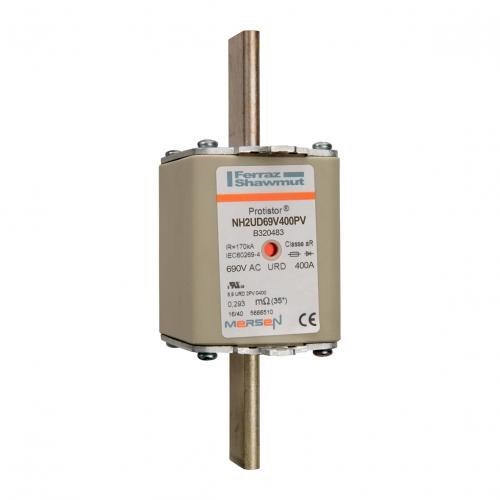

Mersen B320483 Fuse Link 400A 690/700VAC NH2 5.91 in L x 2.05 in W x 2.91 in H 170kA AR

Product Code: B320483

  • Rated for 400 A current handling
  • Operates at up to 700 VAC
  • High breaking capacity of 170 kA
  • Durable ceramic body and insulation
  • Compact NH2 size for easy mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Application
Protection of inverters, UPS systems, motor drives and similar 700 V or less equipment

Electrical

Breaking Capacity
170kA
Rated Current (In)
400A
Rated Voltage (Ur)
690V

Mechanical

Body Style
Square body
Indicators
Double indicator
Material
Body:Ceramic, Terminal: brass
Size Code
Size 2

Dimensions & Physical Data

Height
74mm
Length
150mm
Weight
0.62kg (Approx.)
Width
52mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4, UL/CSA Recognized

Documents

IPD Product Catalogue V17
