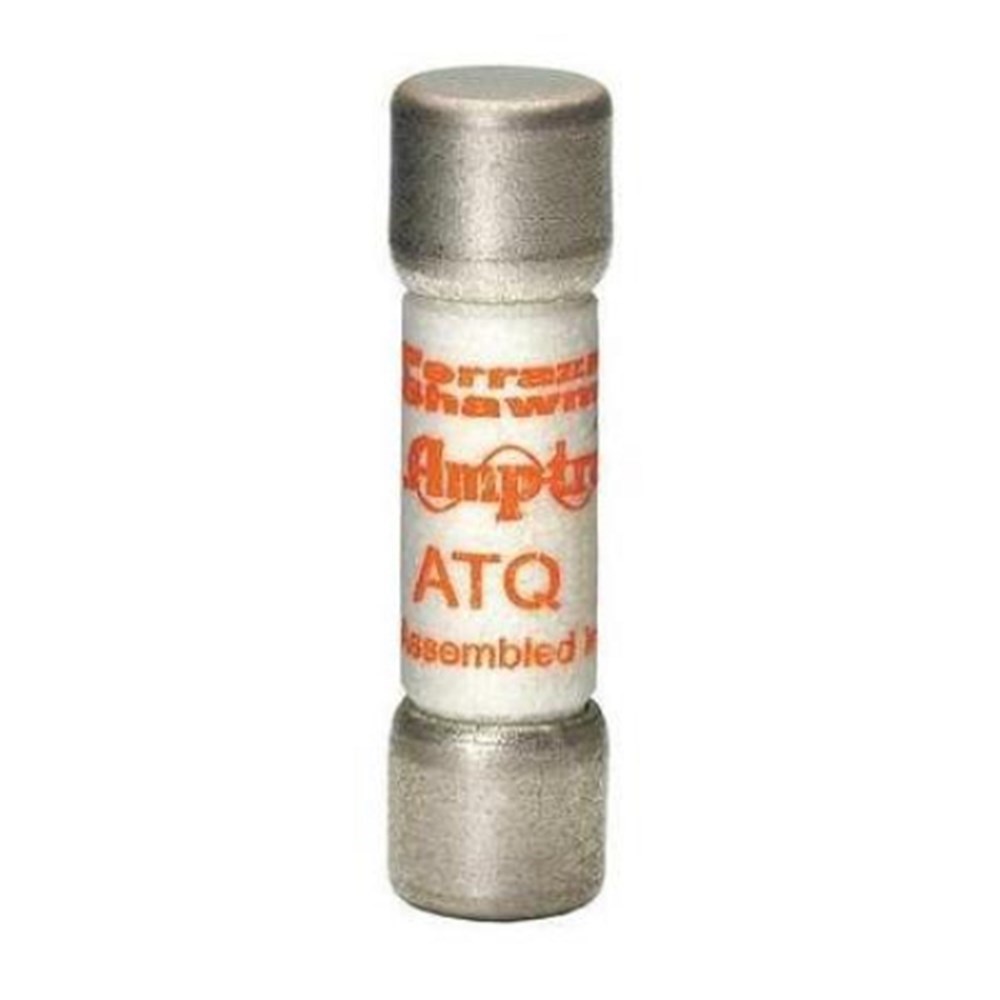

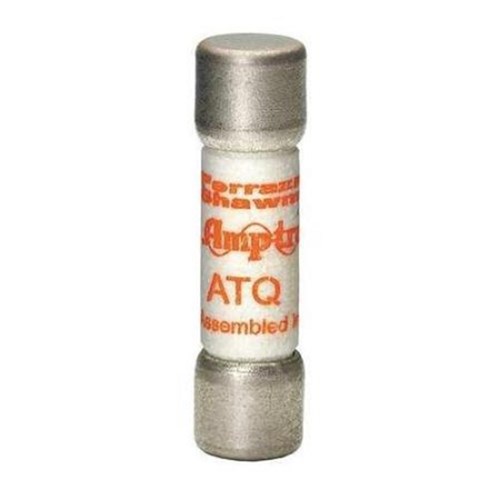

Mersen ATQR9 Power Fuse 9A 600/300VAC/DC Class CC 10.4mm Dia x 38.1mm L Ferrule Terminal Class CC 200kA

Product Code: ATQR9

  • Rated for 9 A current
  • Handles up to 600/300 VAC/VDC
  • High breaking capacity of 200 kA
  • Compact size: 10.4 mm x 38.1 mm
  • Class CC fuse with ferrule terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Class Cc Time - Delay Fuse
Brand
Mersen
Series
ATQR
Application
Control transformers, solenoids, inductive loads, lighting and general-purpose loads

Electrical

Utilization Category
Class CC
Breaking Capacity
200 kA AC
Rated Current (In)
0.375
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
600 V AC / 300 V DC
Speed Class
Time delay

Mechanical

Body Style
Cylindrical rejection fuse
Indicators
without indicator
Material
Fiberglass body
Mounting
Class CC fuse holder
Size Code
10 x 38
Connection/Termination
Rejection-style ferrule end caps

Dimensions & Physical Data

Length
38 mm
Weight
0.0077 kg
Width
Ø 10 mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-4; CSA C22.2 No. 248.4
