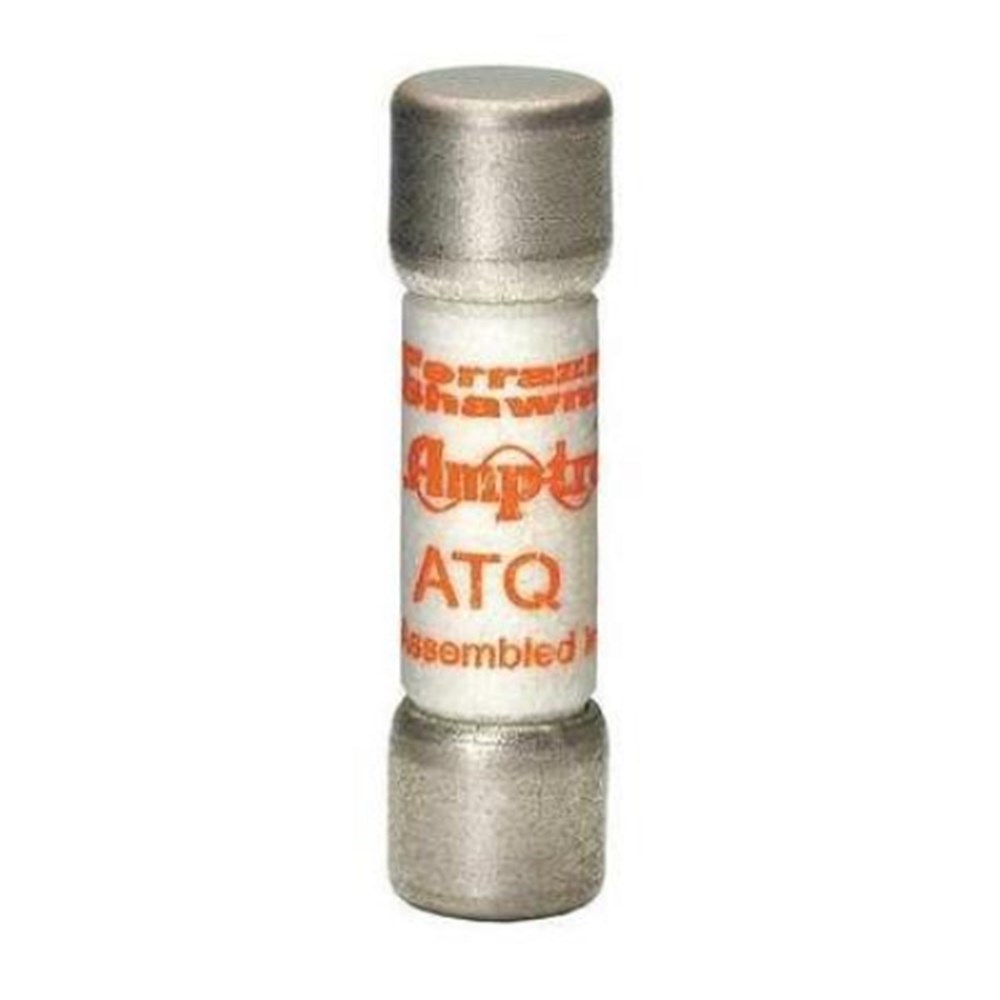

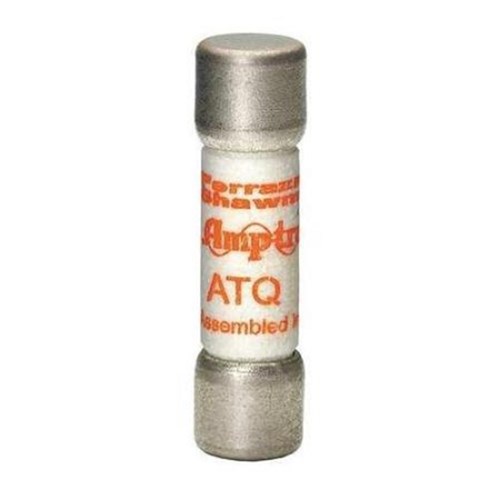

Mersen ATQR4 Power Fuse 4A 600/300VAC/DC Class CC 10.4mm Dia x 38.1mm L Ferrule Terminal Class CC 200kA

Product Code: ATQR4

  • Rated for 4 A and 600/300 VAC/VDC
  • Compact size: 10.4 mm Dia x 38.1 mm L
  • High breaking capacity of 200 kA
  • Clip mounting for easy installation
  • Durable GMG body and insulation material
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
ATQ
Application
Supplemental protection of lighting, solenoid, motor and transformer circuits

Electrical

Breaking Capacity
200 kA
Rated Current (In)
0.166667
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
600 V AC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical body with ferrule end caps
Material
Body:GMG, Terminal:Tin-Plated Copper

Dimensions & Physical Data

Height
38.1 mm
Weight
0.0077 kg (Approx.)
Width
Ø10.4 mm

Safety, Standards & Compliance

Standards and Approvals
UL Listed to UL 248-4 (File E2137), CSA Certified to C22.2 No. 248.4, DC Listed to UL 248

Documents

IPD Product Catalogue V17
