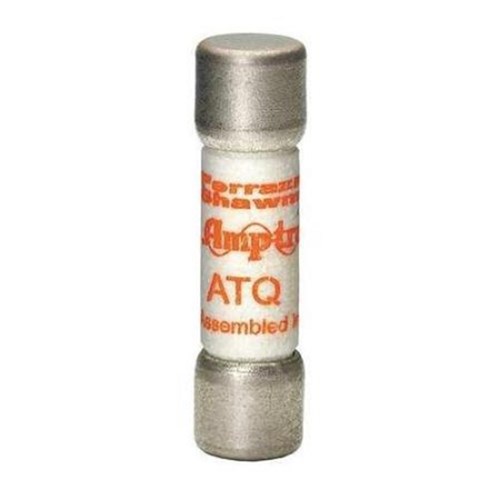

Mersen ATQR30 Power Fuse 30A 600/300VAC/DC Class CC 10.4mm Dia x 38.1mm L Ferrule Terminal Class CC 200kA

Product Code: ATQR30

  • Rated for 30 A, 600/300 VAC/VDC
  • Compact size: 10.4 mm Dia x 38.1 mm L
  • High breaking capacity of 200 kA
  • Clip mounting for easy installation
  • Tin plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
ATQ
Application
Supplemental protection of lighting, solenoid, motor and transformer circuits

Electrical

Breaking Capacity
200kA
Rated Current (In)
30A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical body with ferrule end caps
Material
Body:GMG, Terminal:Tin-Plated Copper

Dimensions & Physical Data

Height
38.1mm
Weight
0.0077kg (Approx.)
Width
Ø10.4mm

Safety, Standards & Compliance

Standards and Approvals
UL Listed to UL 248-4 (File E2137), CSA Certified to C22.2 No. 248.4, DC Listed to UL 248
