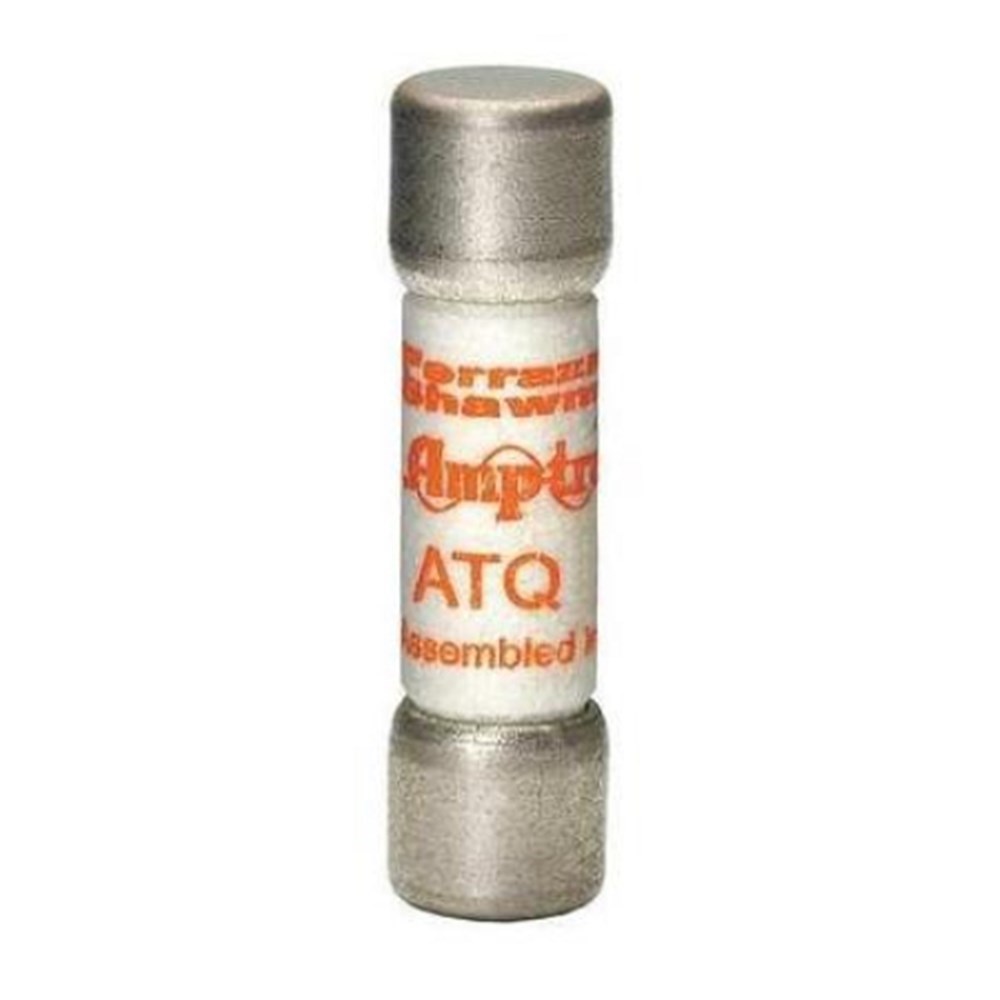

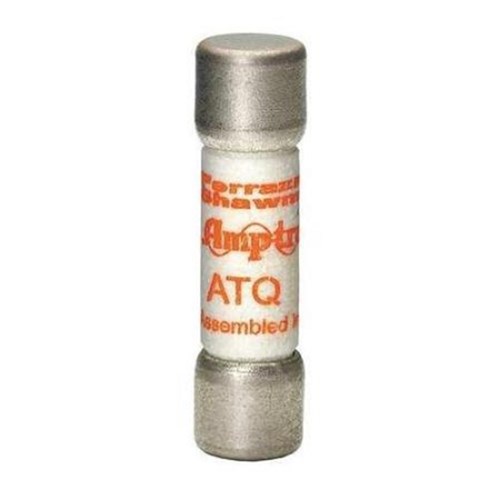

Mersen ATQ5 Time Delay Midget Fuse 5A 500VAC 0.41 in Dia 1.5 in L 10kA Interrupt Ferrule

Product Code: ATQ5

  • Rated for 500 VAC and 5 A
  • Compact size: 1.5 in length
  • High interrupt rating of 10 kA
  • Ferrule terminals with tin-plated copper
  • Durable GMG body and insulation material
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
ATQ
Application
Supplemental protection of lighting, solenoid, motor and transformer circuits

Electrical

Breaking Capacity
10 kA
Rated Current (In)
0.208333
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
500 V AC
Speed Class
Time Delay

Mechanical

Body Style
Ferrule
Material
Body:GMG, Terminal:Tin-Plated Copper

Dimensions & Physical Data

Height
38.1 mm
Weight
0.0064 kg (Approx.)
Width
Ø10.3 mm

Safety, Standards & Compliance

Standards and Approvals
UL Listed to UL 248-4 (File E2137), CSA Certified to C22.2 No. 248.4, DC Listed to UL 248
