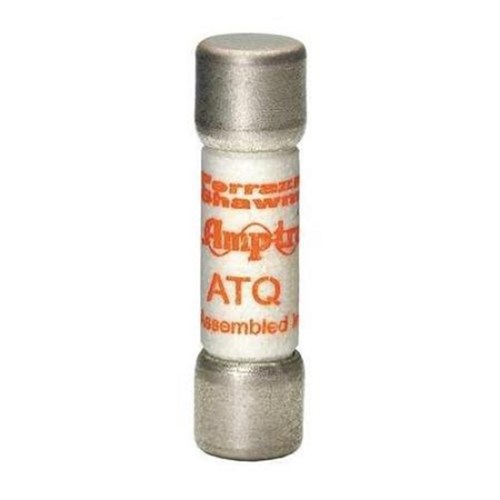

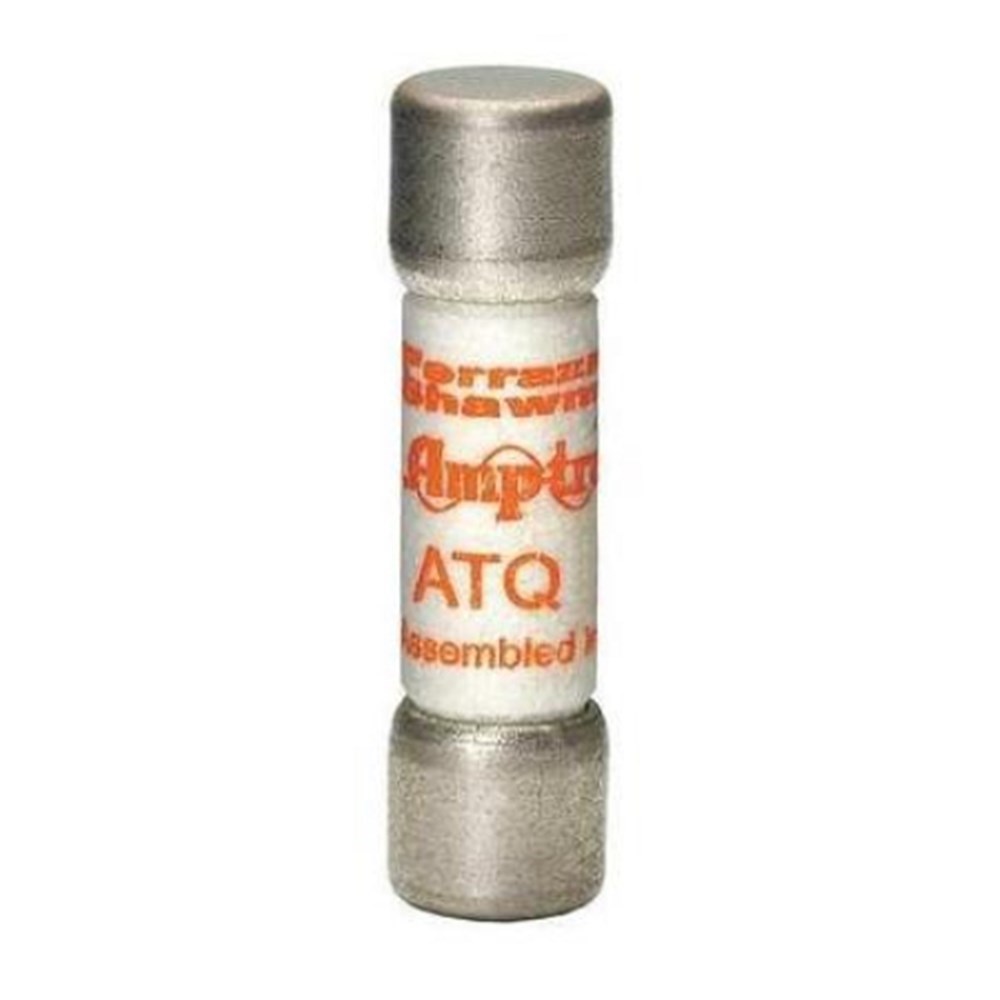

Mersen ATQ14 Time Delay Midget Fuse 14A 500VAC 0.41 in Dia 1.5 in L 10kA Interrupt Ferrule

Product Code: ATQ14

  • Rated for 14 A current
  • Handles up to 500 VAC
  • Compact design at 1.5 in length
  • Clip mounting for easy install
  • Tin plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
ATQ

Electrical

Breaking Capacity
10kA
Rated Current (In)
14A
Rated Voltage (Ur)
500V AC
Speed Class
Time-delay

Mechanical

Body Style
Cylindrical Ferrule

Dimensions & Physical Data

Length
38.1mm
Weight
0.0064kg (Approx.)
Width
Ø 10.4mm
