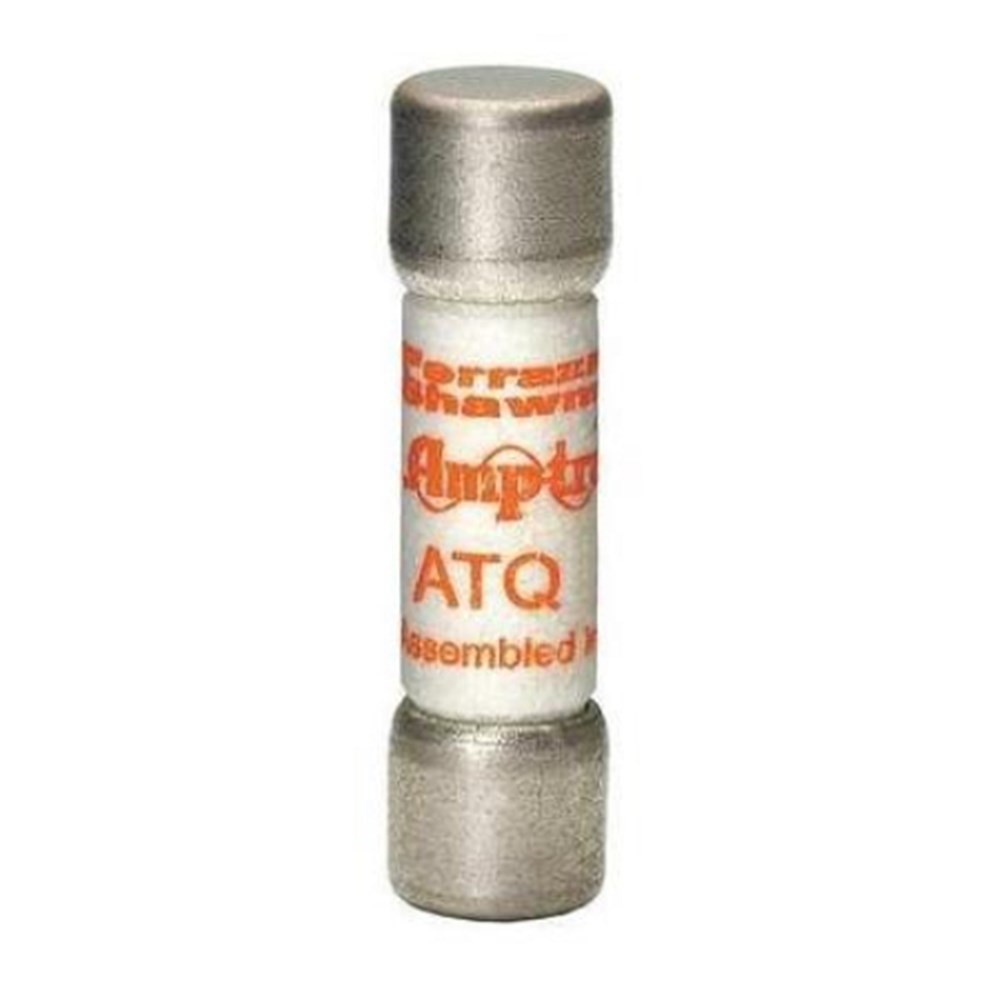

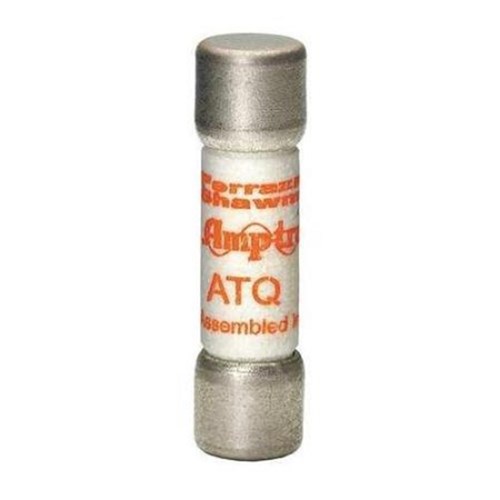

Mersen ATQ1 Time Delay Midget Fuse 1A 500VAC 0.41 in Dia 1.5 in L 10kA Interrupt Ferrule

Product Code: ATQ1

  • Rated for 500 VAC & 1 A
  • Interrupt rating of 10 kA
  • Compact size: 1.5 in length
  • Tin plated copper terminals
  • Easy clip mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
ATQ

Electrical

Breaking Capacity
10 kA
Rated Current (In)
0.041667
Rated Voltage (Ur)
500 V AC
Speed Class
Time-delay

Mechanical

Body Style
Cylindrical Ferrule

Dimensions & Physical Data

Length
38.1 mm
Weight
0.0064 kg (Approx.)
Width
Ø 10.4 mm

Documents

IPD Product Catalogue V17
