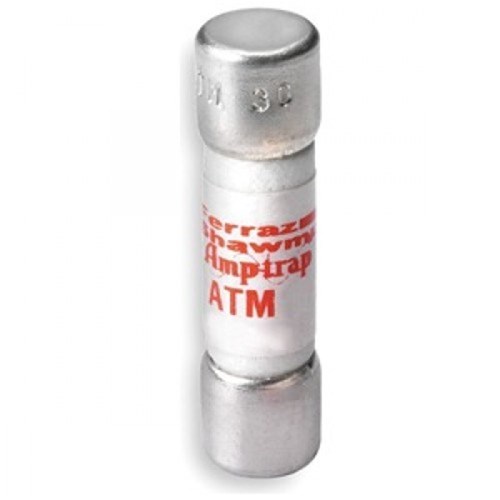

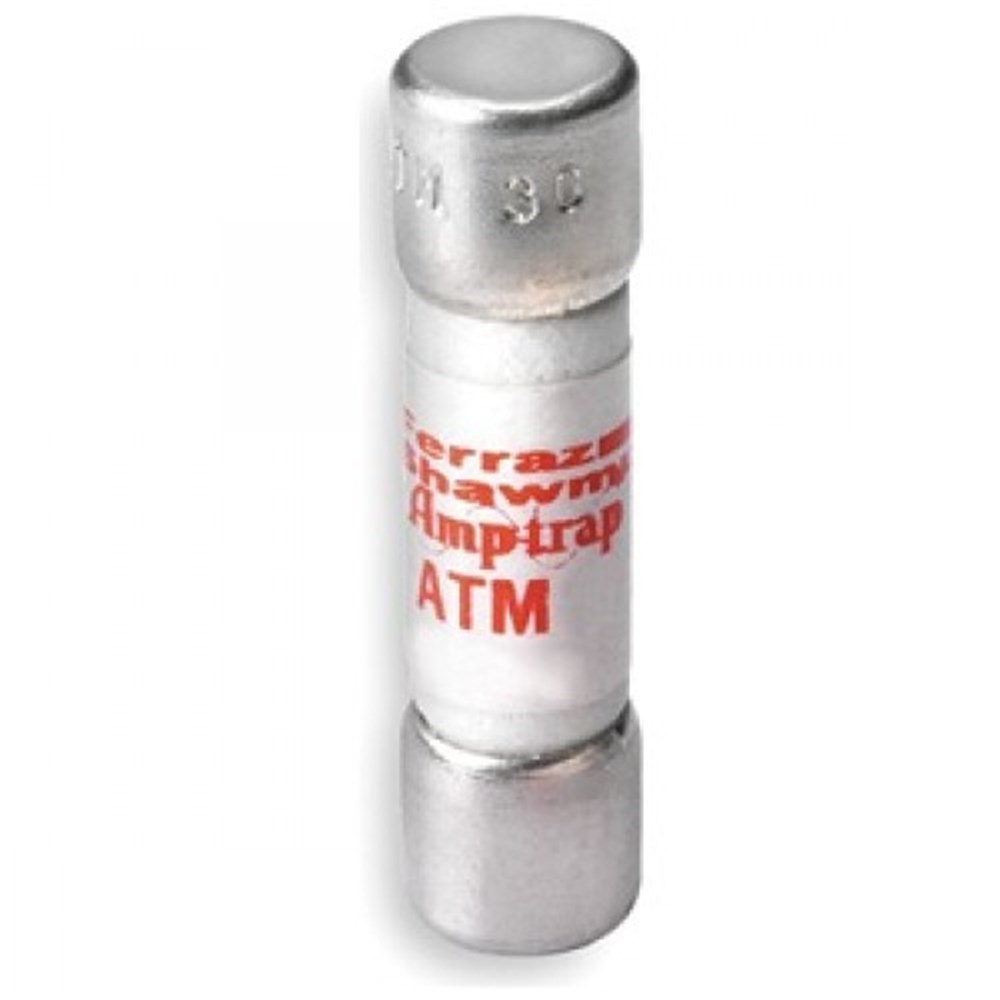

Mersen ATMR9 Power Fuse 9A 600VAC/DC Class CC Rejection 0.41 in Dia x 1.5 in L 200kA Fast Acting

Product Code: ATMR9

  • Rated for 9 A and 600 VAC/VDC
  • High breaking capacity of 200 kA
  • Compact size: 0.41 in Dia x 1.5 in L
  • Clip mounting with ferrule terminals
  • Durable GMG body with tin-plated copper connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
ATMR

Electrical

Breaking Capacity
200 kA
Rated Current (In)
0.375
Rated Voltage (Ur)
600 V AC
Speed Class
Fast-acting

Mechanical

Body Style
Rejection
Material
Body: GMG, Terminal:Tin-Plated Copper

Dimensions & Physical Data

Length
38.1 mm
Weight
0.0077 kg (Approx.)
Width
Ø 10.4 mm
