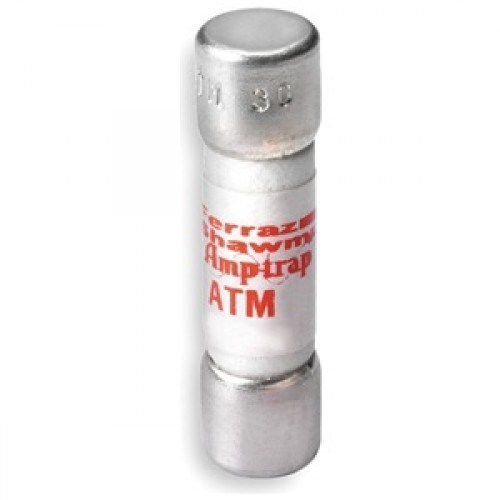

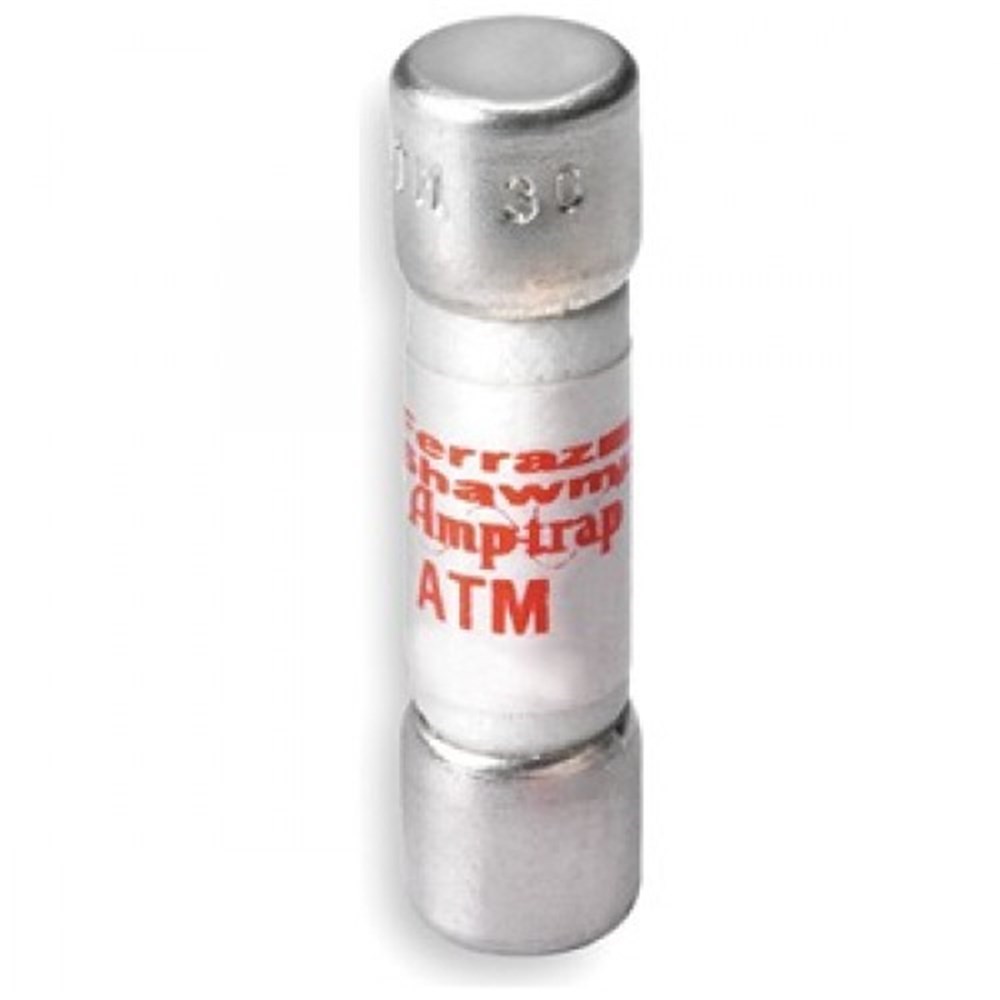

Mersen ATMR25 Power Fuse 25A 600VAC/DC Class CC Rejection 0.41 in Dia x 1.5 in L 200kA Fast Acting

Product Code: ATMR25

  • 25 A rated current for reliable performance
  • Handles up to 600 VAC/VDC voltage
  • Compact size: 0.41 in Dia x 1.5 in L
  • High breaking capacity of 200 kA
  • Class CC fuse with rejection body style
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
ATMR
Application
Control circuits, Lighting, General loads, Branch circuit protection

Electrical

Breaking Capacity
200kA
Rated Current (In)
25A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC/DC
Speed Class
Fast-acting

Mechanical

Body Style
Cylindrical body with ferrule end caps
Material
Body:GMG, Terminal:Tin-Plated Copper
Mounting
Clip

Dimensions & Physical Data

Height
38.1mm
Weight
0.0077kg (Approx.)
Width
Ø10.4mm

Safety, Standards & Compliance

Standards and Approvals
UL Listed to UL 248-4 (File E2137), CSA Certified to C22.2 No. 248.4, DC Listed to UL 248
