Products

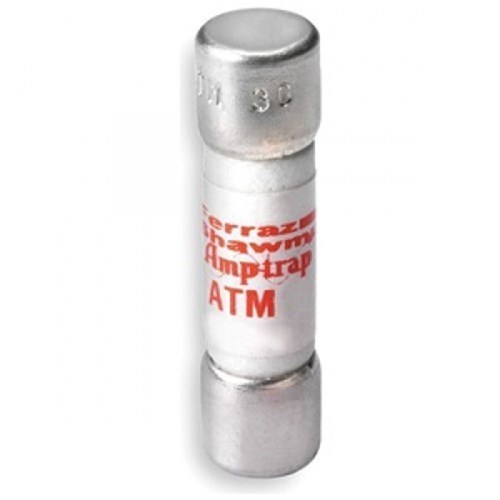

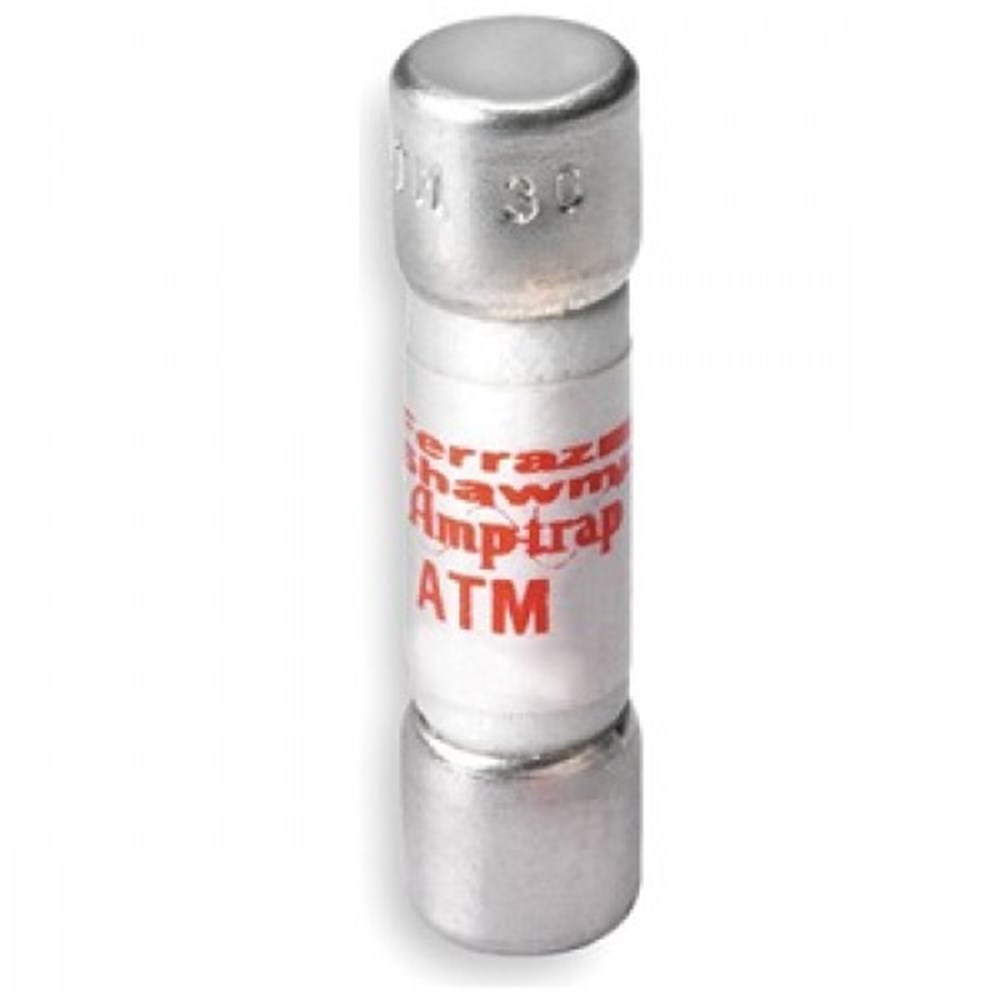

Mersen ATMR2 Power Fuse 2A 600VAC/DC Class CC Rejection 0.41 in Dia x 1.5 in L 200kA Fast Acting

Product Code: ATMR2

  • 2 A current rating for reliable protection
  • 600 VAC/VDC voltage capacity
  • High breaking capacity of 200 kA
  • Compact size: 0.41 in Dia x 1.5 in L
  • Class CC rejection style with ferrule terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
ATMR
Application
Control circuits, Lighting, General loads, Branch circuit protection

Electrical

Breaking Capacity
200 kA
Rated Current (In)
0.083333
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
600 V AC / DC
Speed Class
Fast-acting

Mechanical

Body Style
Cylindrical body with ferrule end caps
Material
Body:GMG, Terminal:Tin-Plated Copper
Mounting
Clip

Dimensions & Physical Data

Height
38.1 mm
Weight
0.0077 kg (Approx.)
Width
Ø10.4 mm

Safety, Standards & Compliance

Standards and Approvals
UL Listed to UL 248-4 (File E2137), CSA Certified to C22.2 No. 248.4, DC Listed to UL 248
