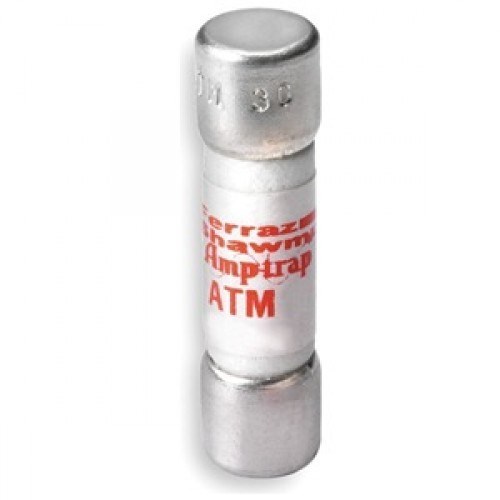

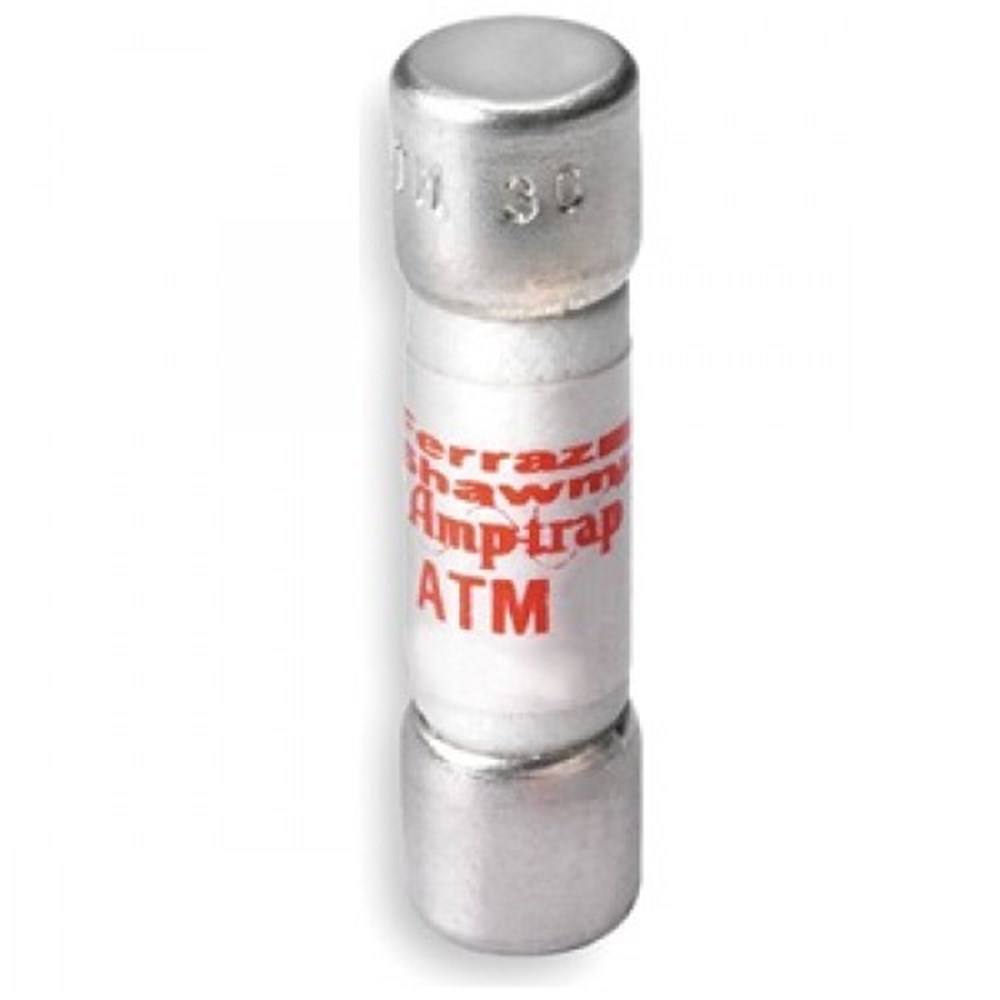

Mersen ATMR10 Power Fuse 10A 600VAC/DC Class CC Rejection 0.41 in Dia x 1.5 in L 200kA Fast Acting

Product Code: ATMR10

  • Rated for 10 A at 600 VAC/VDC
  • High breaking capacity of 200 kA
  • Compact body: 0.41 in Dia x 1.5 in L
  • Rejection-style Class CC fuse
  • Tin-plated copper ferrule terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
ATMR
Application
Control circuits, Lighting, General loads, Branch circuit protection

Electrical

Breaking Capacity
200 kA
Rated Current (In)
0.416667
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
600 V AC / DC
Speed Class
Fast-acting

Mechanical

Body Style
Cylindrical body with ferrule end caps
Material
Body:GMG, Terminal:Tin-Plated Copper
Mounting
Clip

Dimensions & Physical Data

Height
38.1 mm
Weight
0.0077 kg (Approx.)
Width
Ø10.4 mm

Safety, Standards & Compliance

Standards and Approvals
UL Listed to UL 248-4 (File E2137), CSA Certified to C22.2 No. 248.4, DC Listed to UL 248
