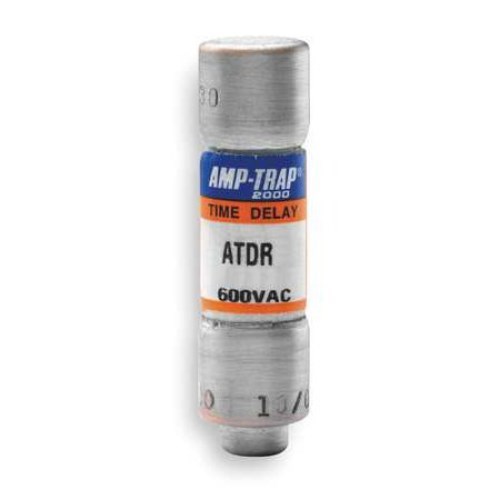

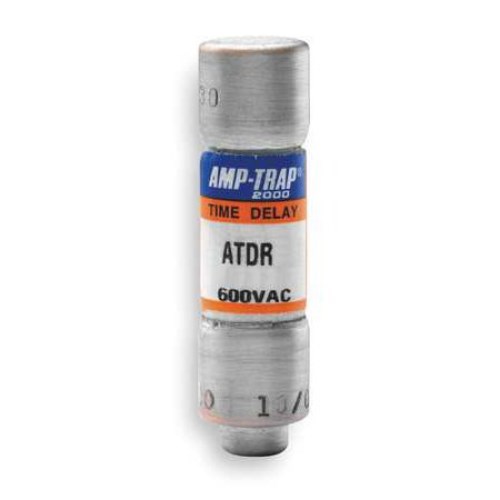

Mersen ATDR3 Power Fuse 3A 600/300VAC/DC Class CC 10.4mm Dia x 38.1mm L Ferrule Terminal Class CC 200kA

Product Code: ATDR3

  • Rated for 600/300 VAC/VDC, 3 A
  • High breaking capacity of 200 kA
  • Compact size: 10.4 mm Dia x 38.1 mm L
  • Easy clip mounting design
  • Durable GMG body and insulation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
ATDR
Application
Small motors, contactors, lighting, heating and general loads; branch circuit protection

Electrical

Utilization Category
Class CC
Breaking Capacity
200 kA AC / 100 kA DC
Rated Current (In)
0.125
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
600 V AC / 300 V DC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Indicators
No
Material
Body: Fiberglass; Contact: Tin-plated copper
Mounting
Fuse holder
Size Code
10 x 38
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
38 mm
Weight
0.0077 kg
Width
Ø 10.3 mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-4; CSA C22.2 No. 248.4; DC listed to UL 248 UL Listed File E2137; CSA Certified
