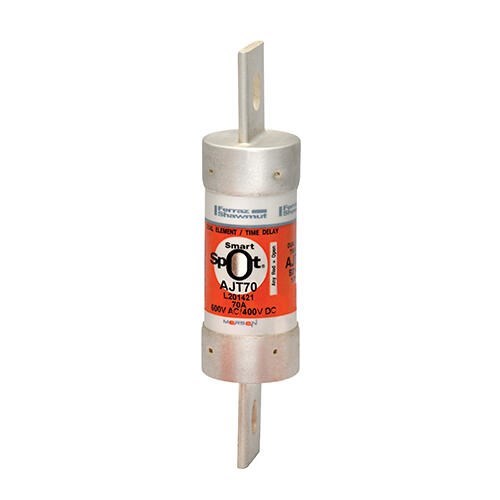

Mersen AJT70 Power Fuse 70A 600/400VAC/DC Class J 27mm Dia x 117.6mm L Blade Terminal Class J 200kA

Product Code: AJT70

  • Rated for 70 A, 600/400 VAC/VDC
  • High breaking capacity of 200 kA
  • Versatile clip or bolted mounting
  • Durable GMG body and insulation
  • Silver plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
AJT
Application
Motor circuits, mains, feeders, branch circuits, lighting / heating loads, transformers and control panels

Electrical

Utilization Category
Class J
Breaking Capacity
200kA AC
Rated Current (In)
70A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC / 400V DC
Speed Class
Time delay

Mechanical

Body Style
Blade fuse
Fixing Centres
92mm
Indicators
Non-indicating; SmartSpot indicator version available
Material
Fiberglass body; high-grade silica filler; metal end caps
Mounting
Fuse holder / fuse block
Size Code
Class J 401–600 A
Connection/Termination
Blade terminals

Dimensions & Physical Data

Height
117mm
Weight
0.1093kg
Width
27mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-8; CSA C22.2 No. 248.8; IEC 60269-2-1
