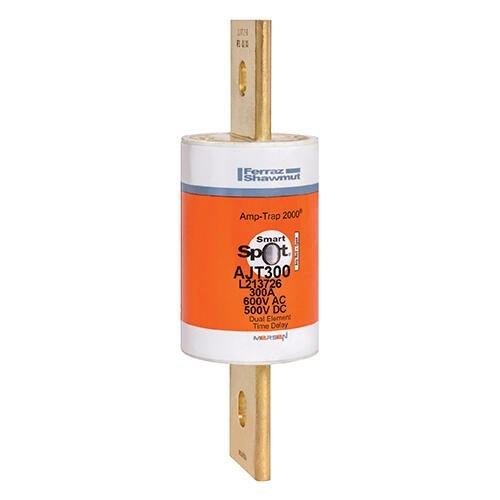

Mersen AJT300 Power Fuse 300A 600/500VAC/DC Class J 54mm Dia x 181.1mm L Blade Terminal Class J 200kA

Product Code: AJT300

  • 300A rated current for high power needs
  • 600/500 VAC/VDC voltage rating
  • Clip or bolted mounting flexibility
  • High breaking capacity of 200 kA
  • Durable GMG body and insulation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
AJT
Application
Protection at all levels of power distribution

Electrical

Breaking Capacity
300kA
Rated Current (In)
300A
Rated Voltage (Ur)
600V AC / 400V DC
Speed Class
Time Delay/Class J

Mechanical

Body Style
Bolted Tag
Fixing Centres
133mm
Material
Body: GMG, Terminal:Brass

Dimensions & Physical Data

Length
181.1mm
Weight
0.81kg (Approx.)
Width
Ø 54mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-2-1
