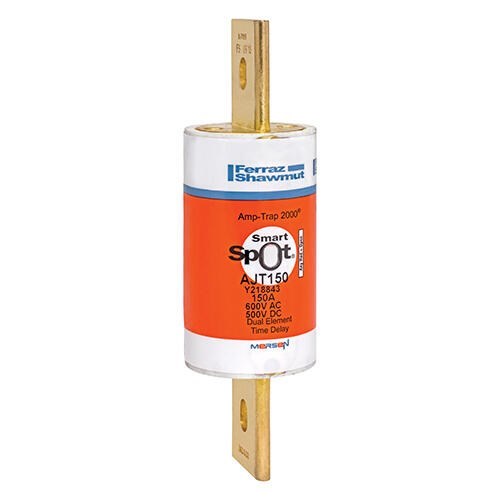

Mersen AJT150 Power Fuse 150A 600/500VAC/DC Class J 41.3mm Dia x 146mm L Blade Terminal Class J 200kA

Product Code: AJT150

  • Rated for 150 A, suitable for high-current applications
  • Supports both AC and DC up to 600/500 V
  • High breaking capacity of 200 kA
  • Dual mounting: clip or bolted options available
  • Durable GMG body with brass blade terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
AJT
Application
Protection at all levels of power distribution

Electrical

Breaking Capacity
300kA
Rated Current (In)
150A
Rated Voltage (Ur)
600V AC / 400V DC
Speed Class
Time Delay/Class J

Mechanical

Body Style
Bolted Tag
Fixing Centres
111mm
Material
Body: GMG, Terminal:Brass

Dimensions & Physical Data

Length
146mm
Weight
0.35kg (Approx.)
Width
Ø 41.3mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-2-1

Documents

IPD Product Catalogue V17
